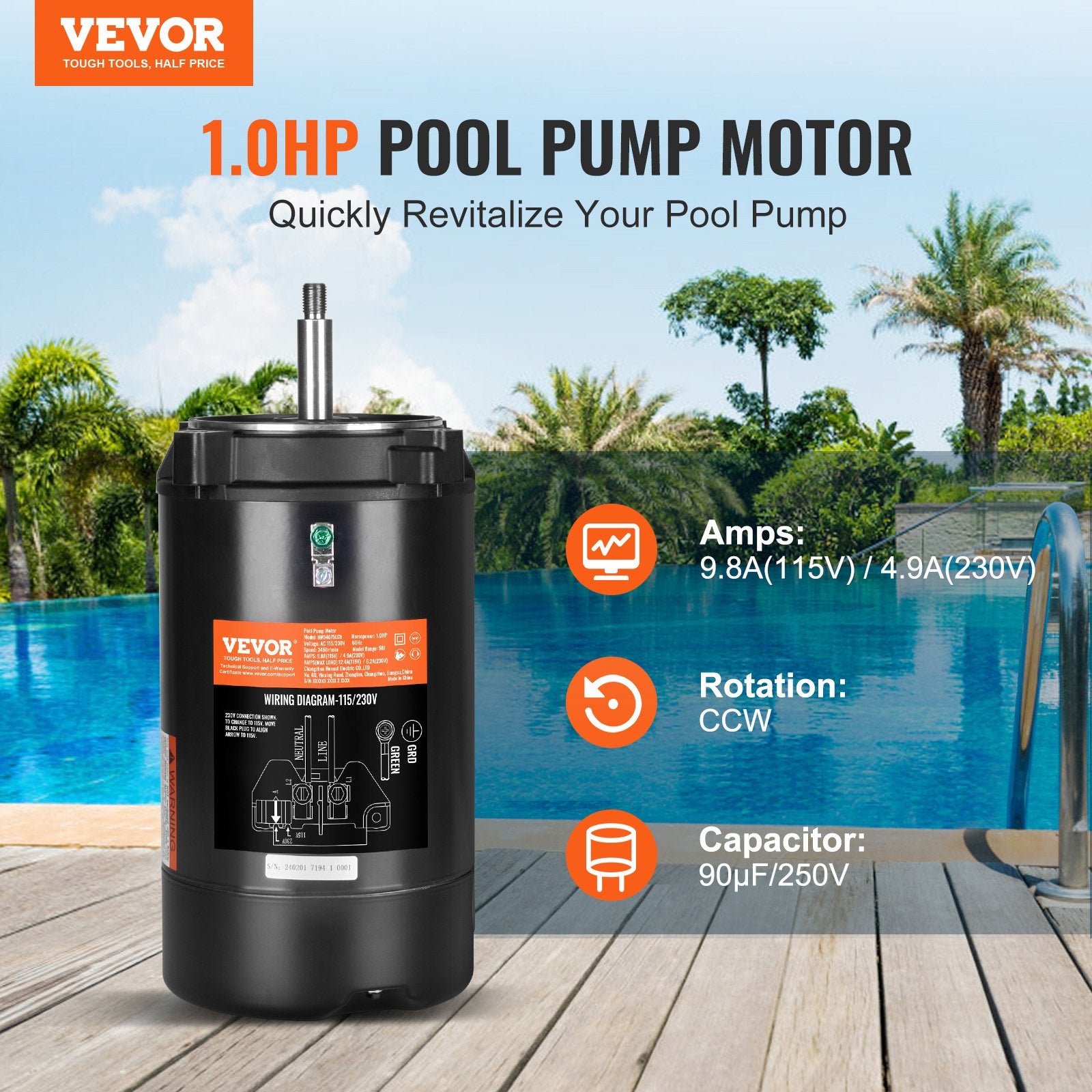

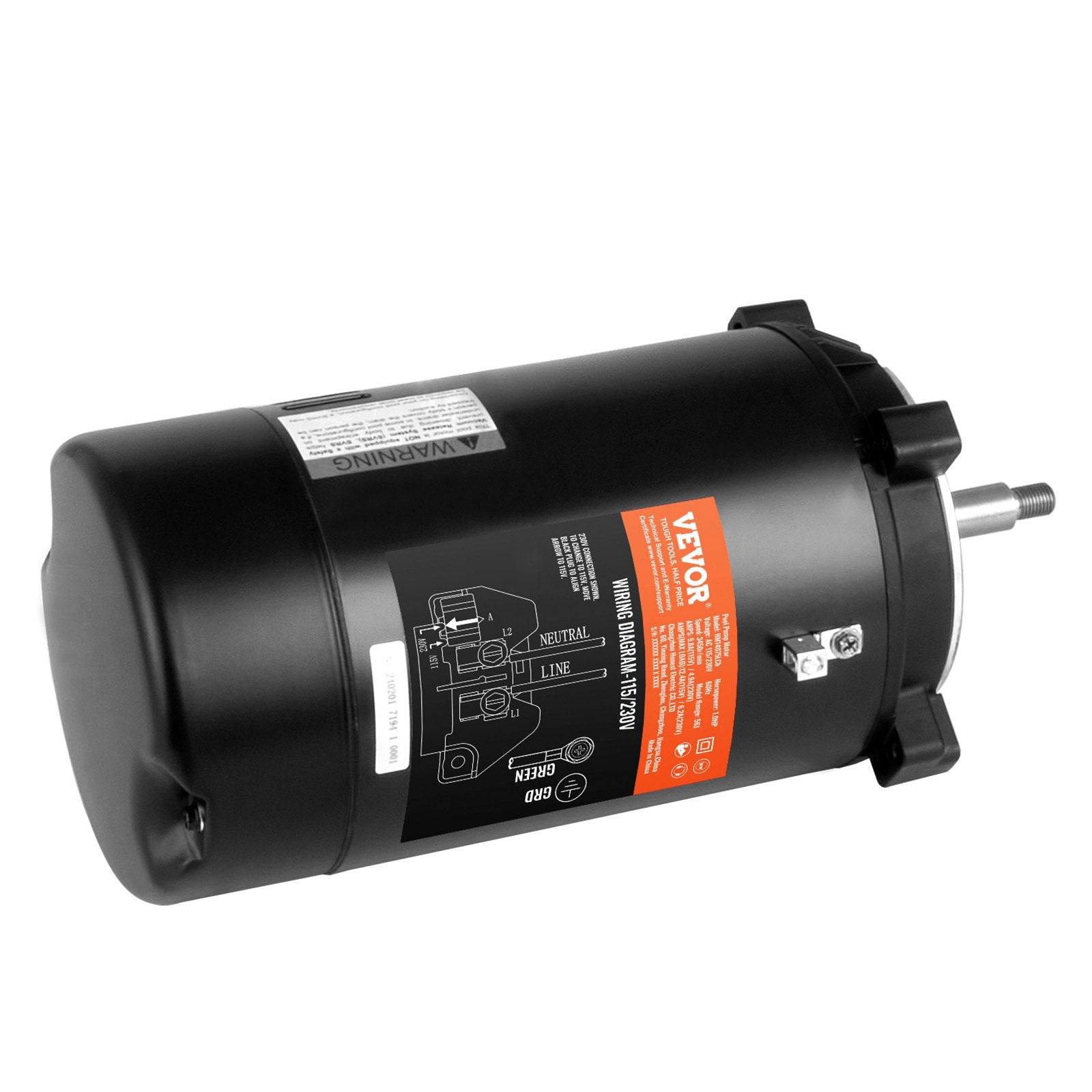

Reliable Performance: VEVOR 1HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC 115/230V; Amps: 9.8/4.9A ; Amps (Max Load): 12.4/6.2A ; SF: 1.4 ; Capacitor: 90μF/250V ; Model Flange: 56J.

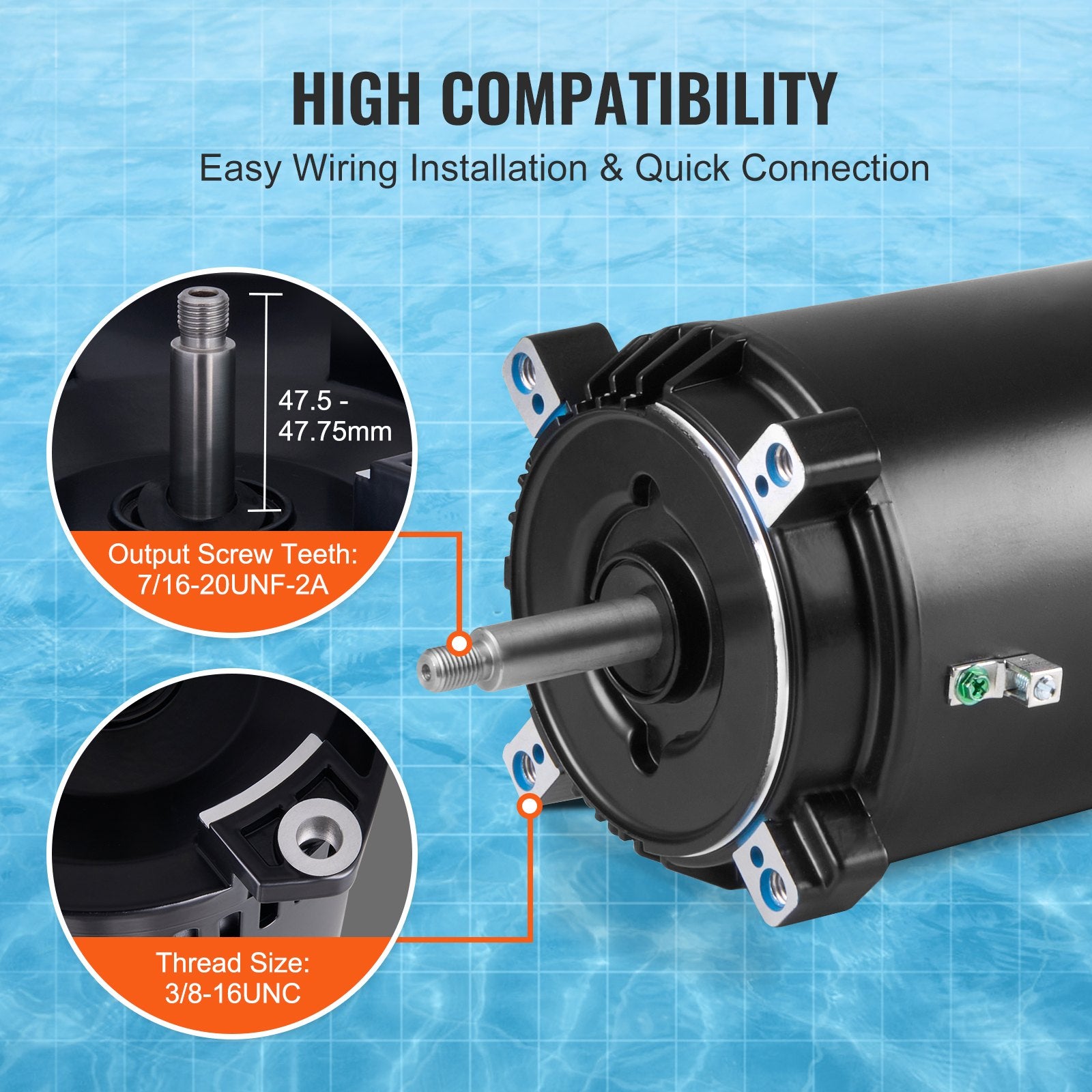

Easy Installation: Installing our pool pump motor is a breeze with a thread size of 3/8-16UNC, output screw teeth of 7/16-20UNF-2A, and a 1.9-inch shaft extension. Get detailed installation instructions with the included user manual.

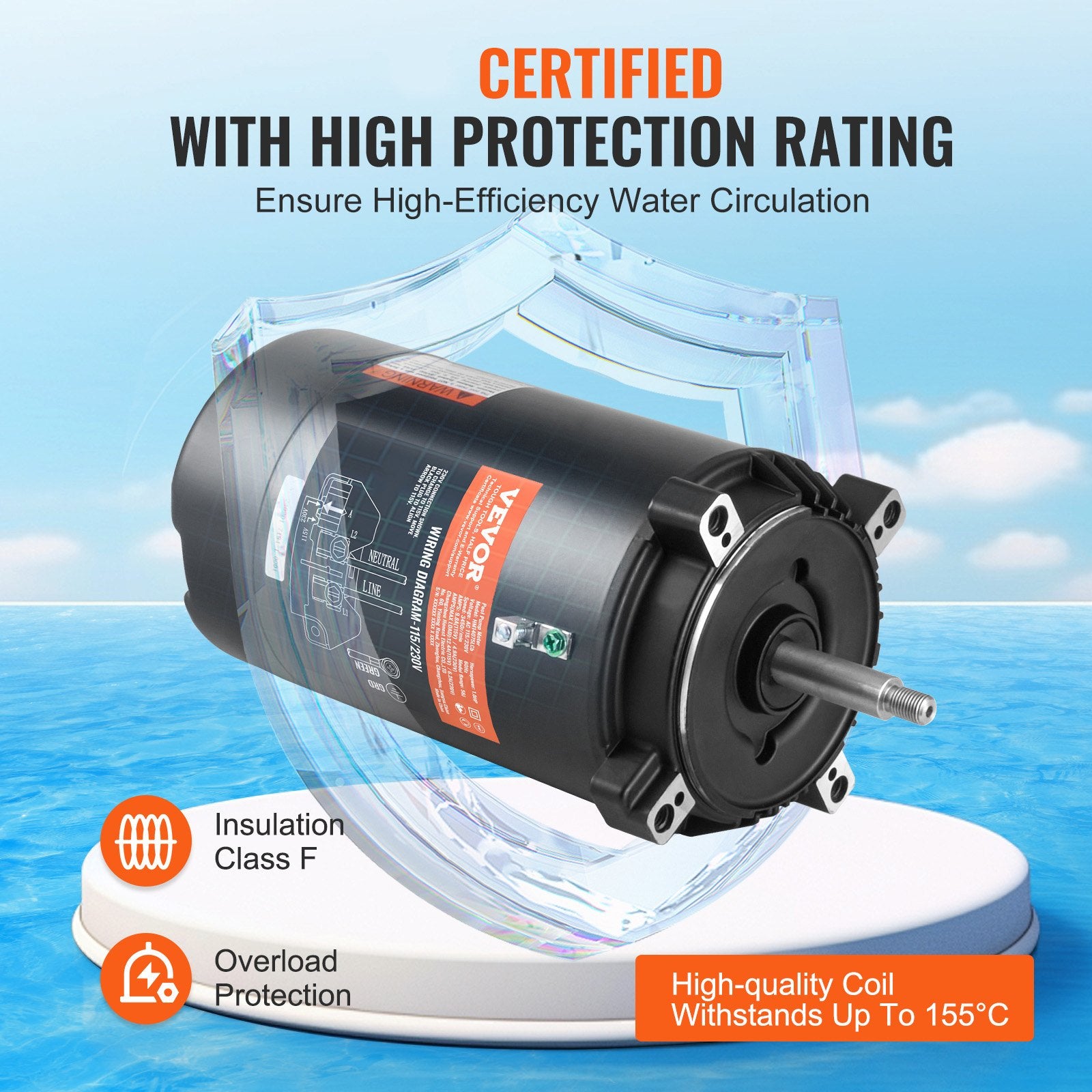

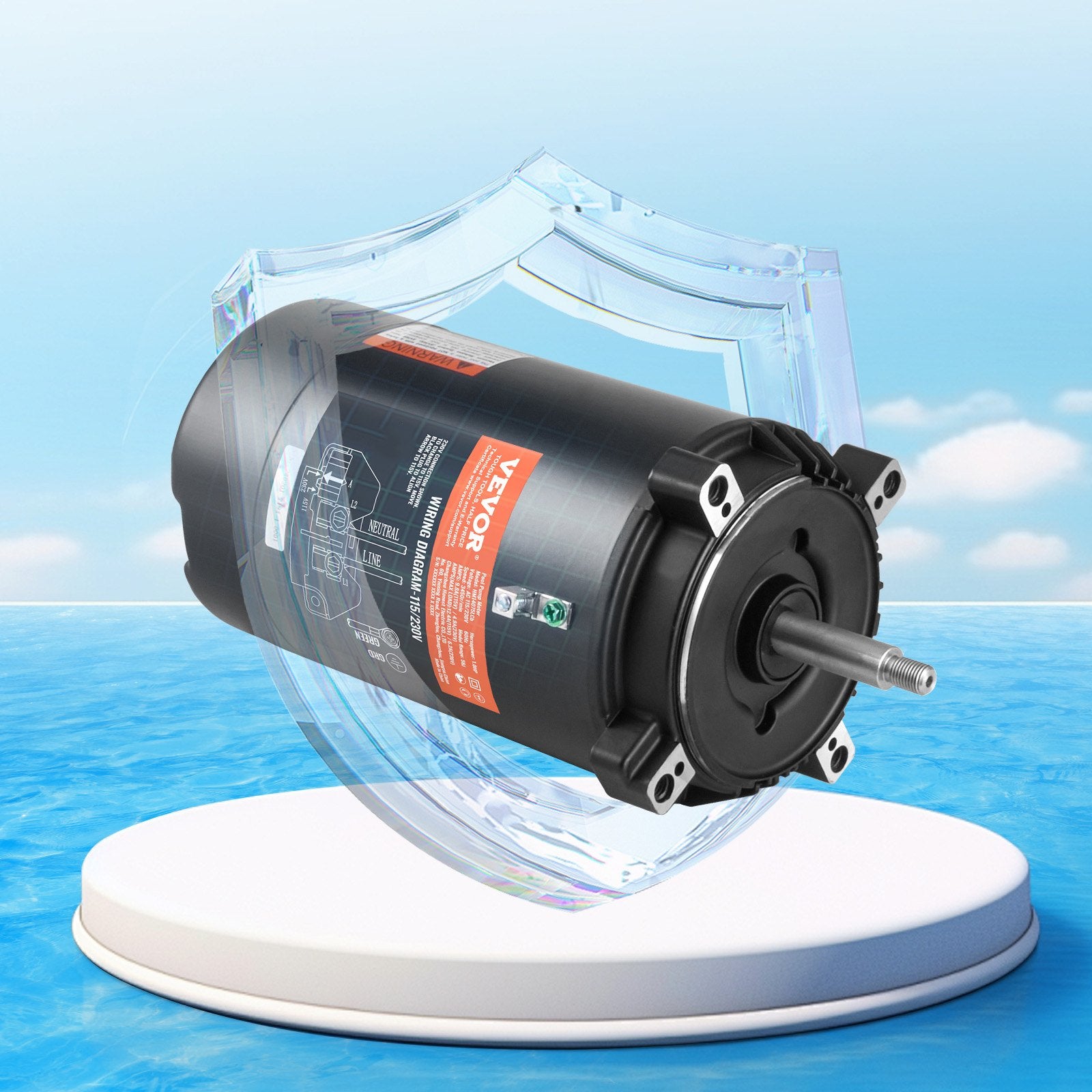

Safety and Durability: Our pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction and overload protection, it ensures safe and enduring power support for pool system.

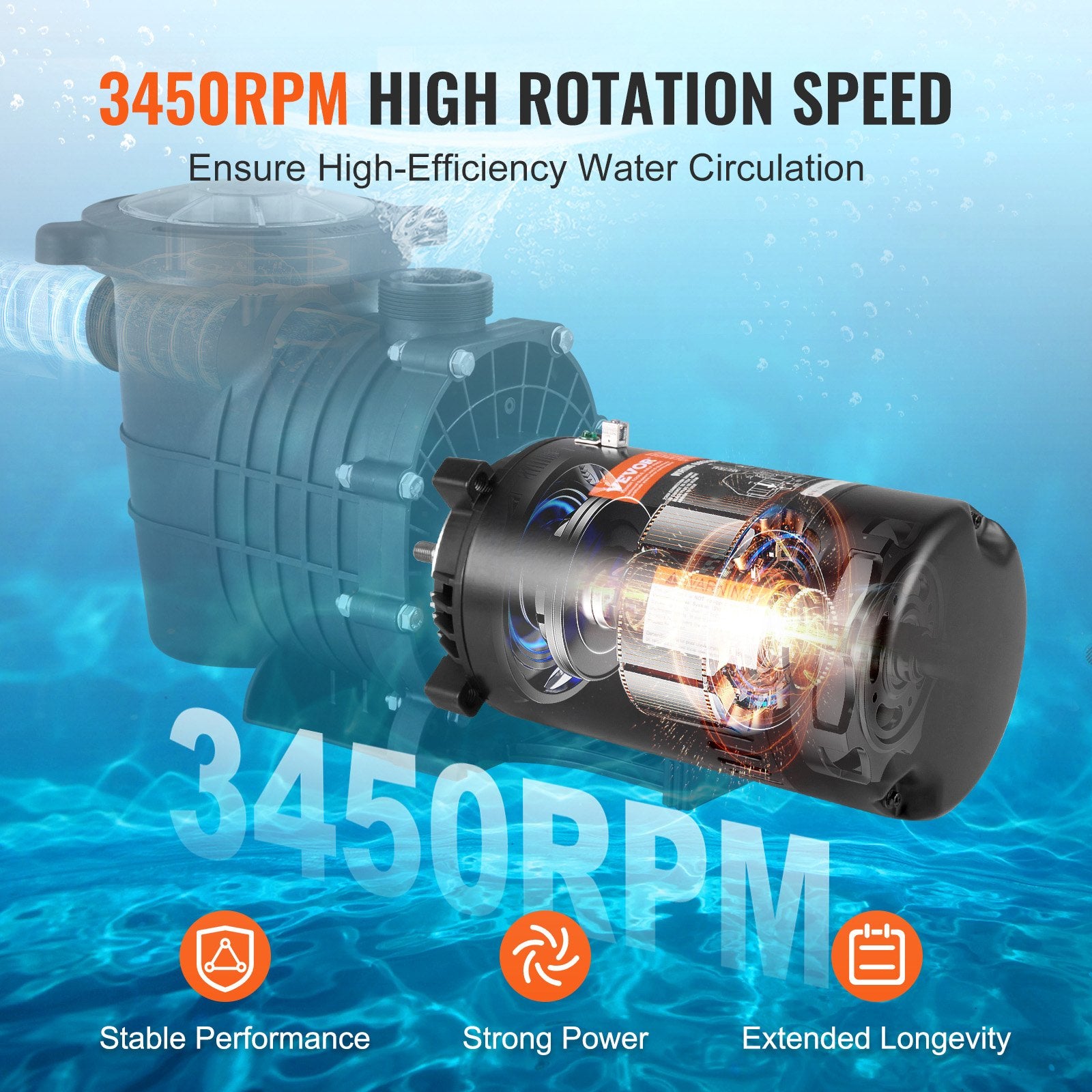

High Efficiency, Energy-Efficient: VEVOR pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 65db low noise level. Dive into a refreshing pool experience with reliability and tranquility.
Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools - from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.

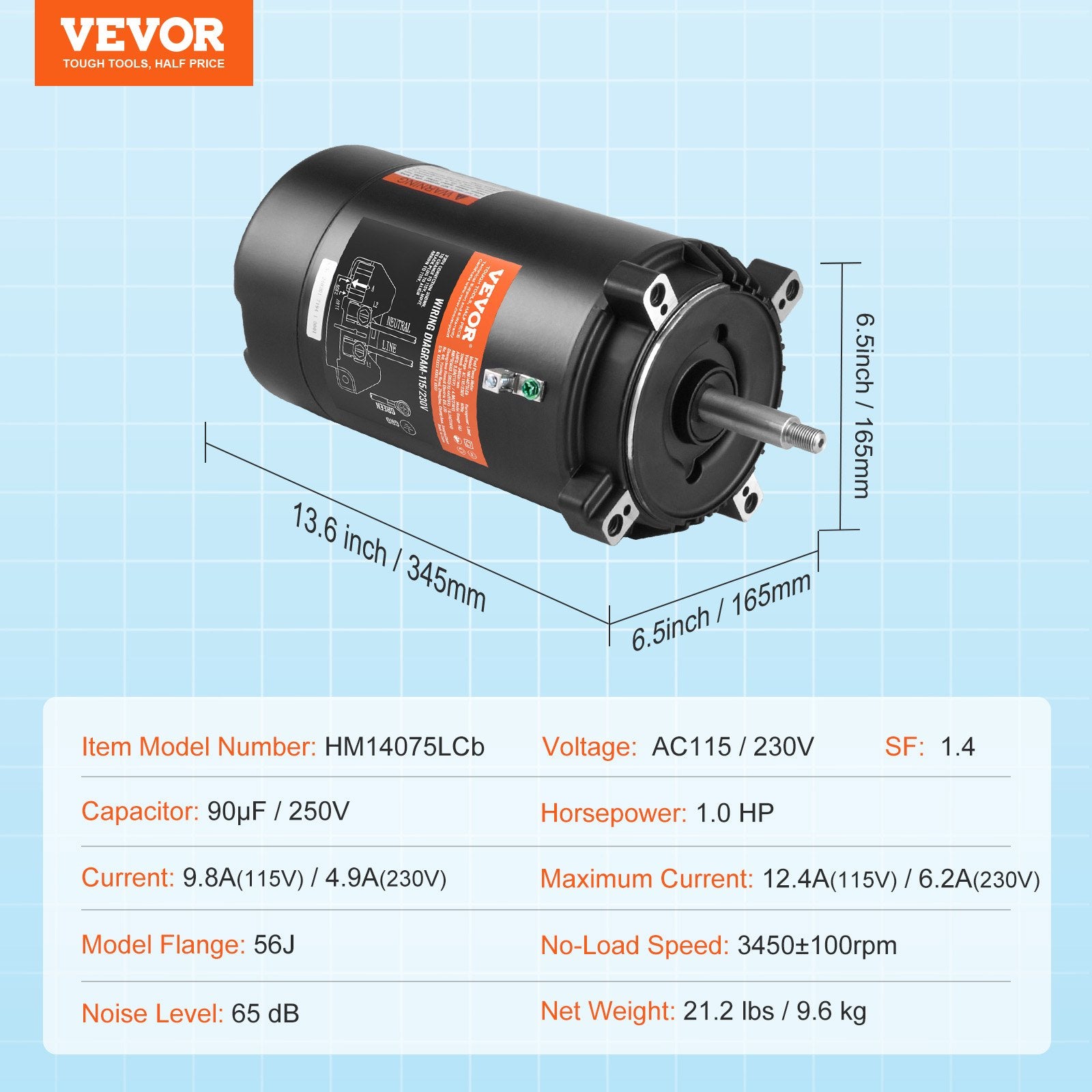

Product Specification
Noise Level: ≤ 65 dB
Horsepower: 1 HP
Voltage: AC 115/230V
Item Model Number: HM14075LCb
Model Flange: 56J
No-Load Speed: 3450 RPM
Product Dimensions: 13.6 x 6.5 x 6.5 inch / 345 x 165 x 165 mm
