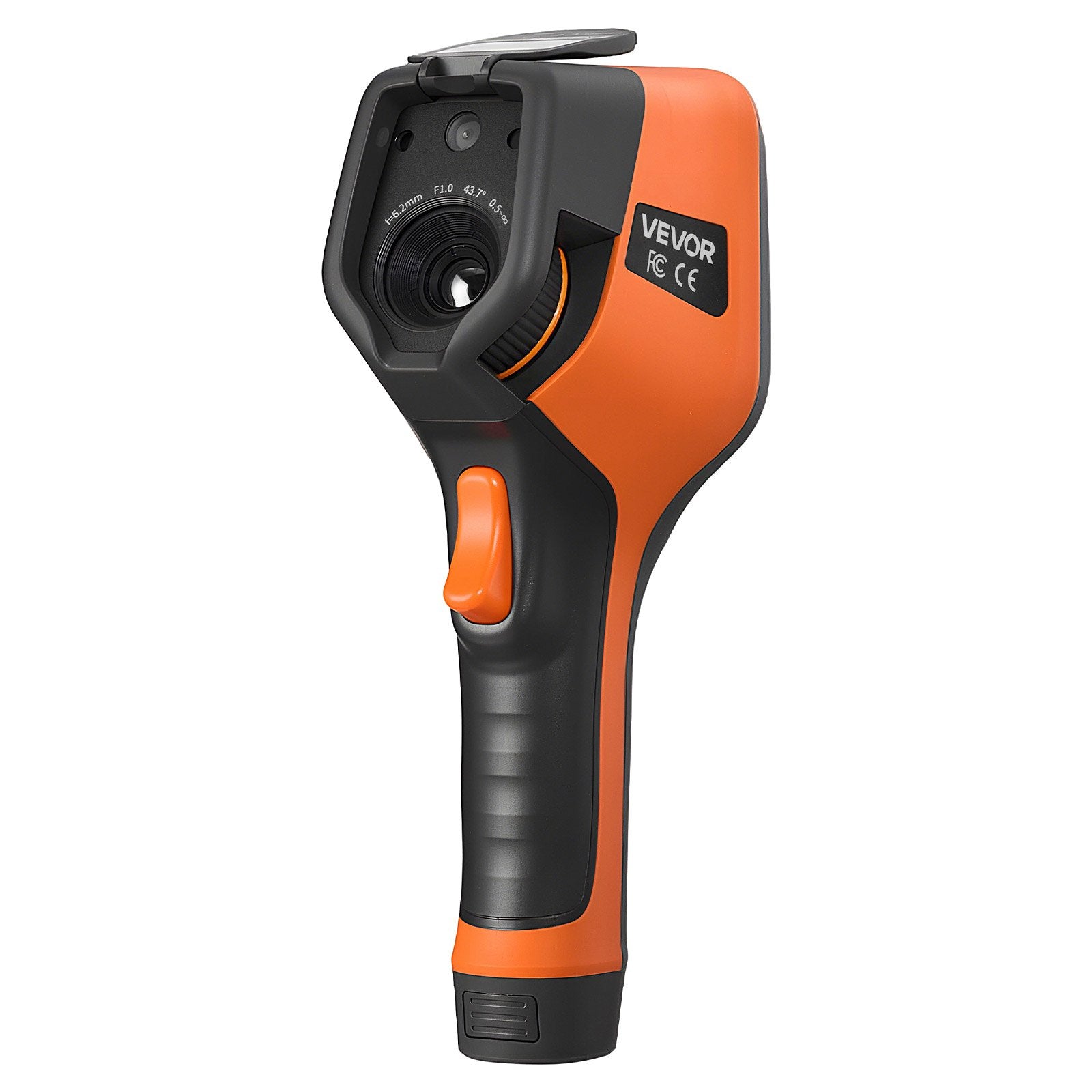

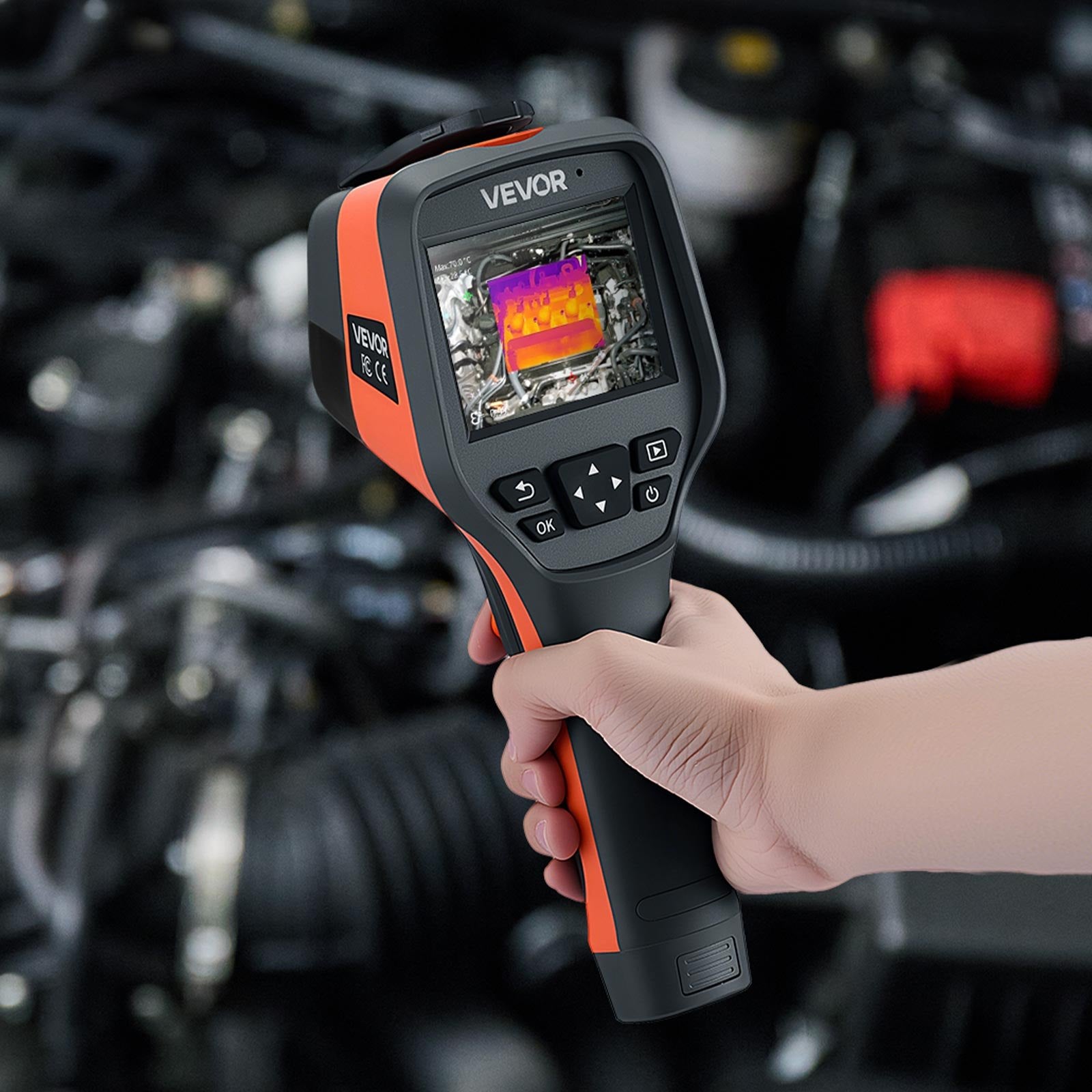

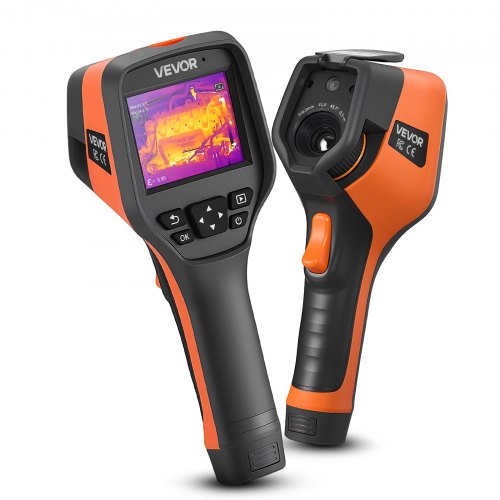

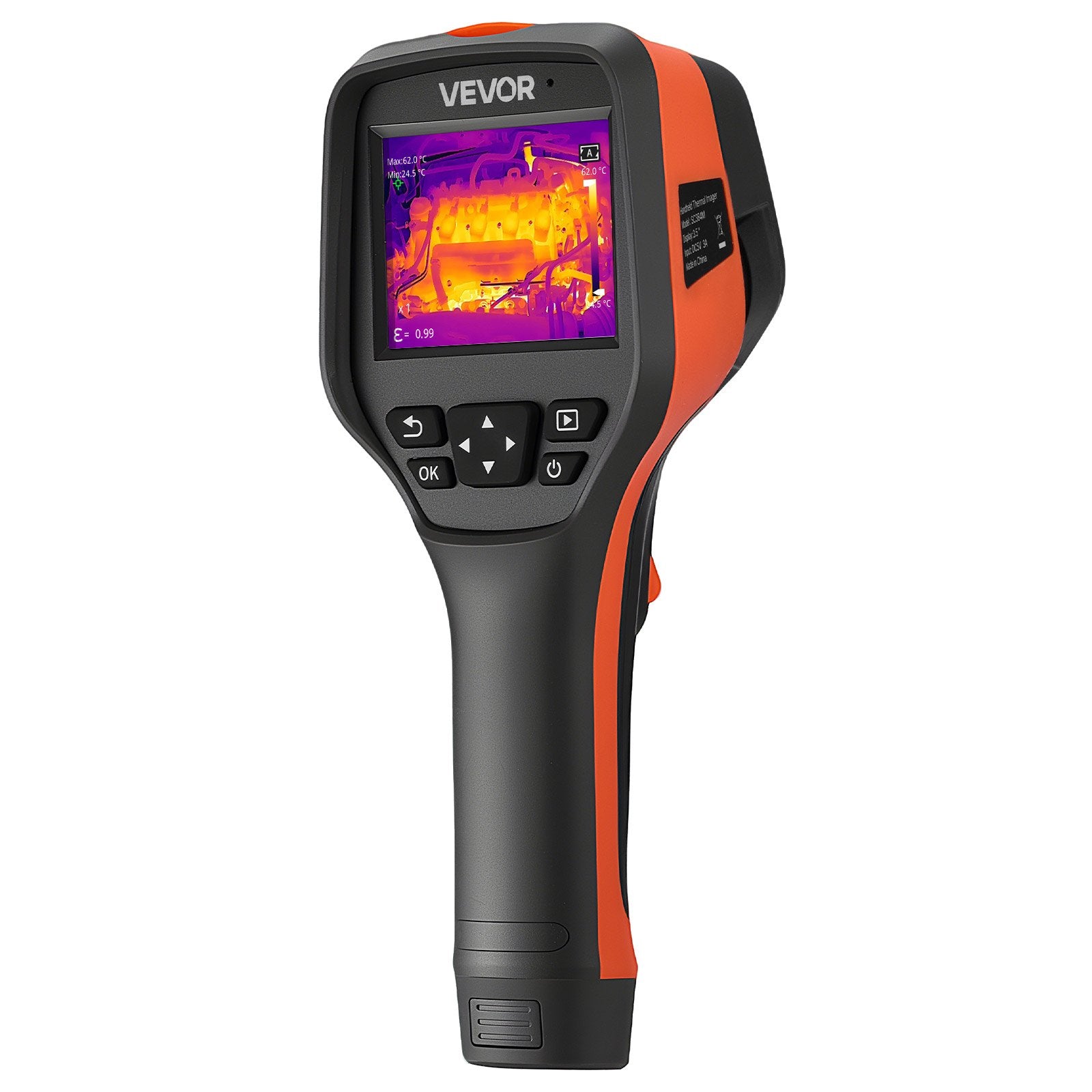

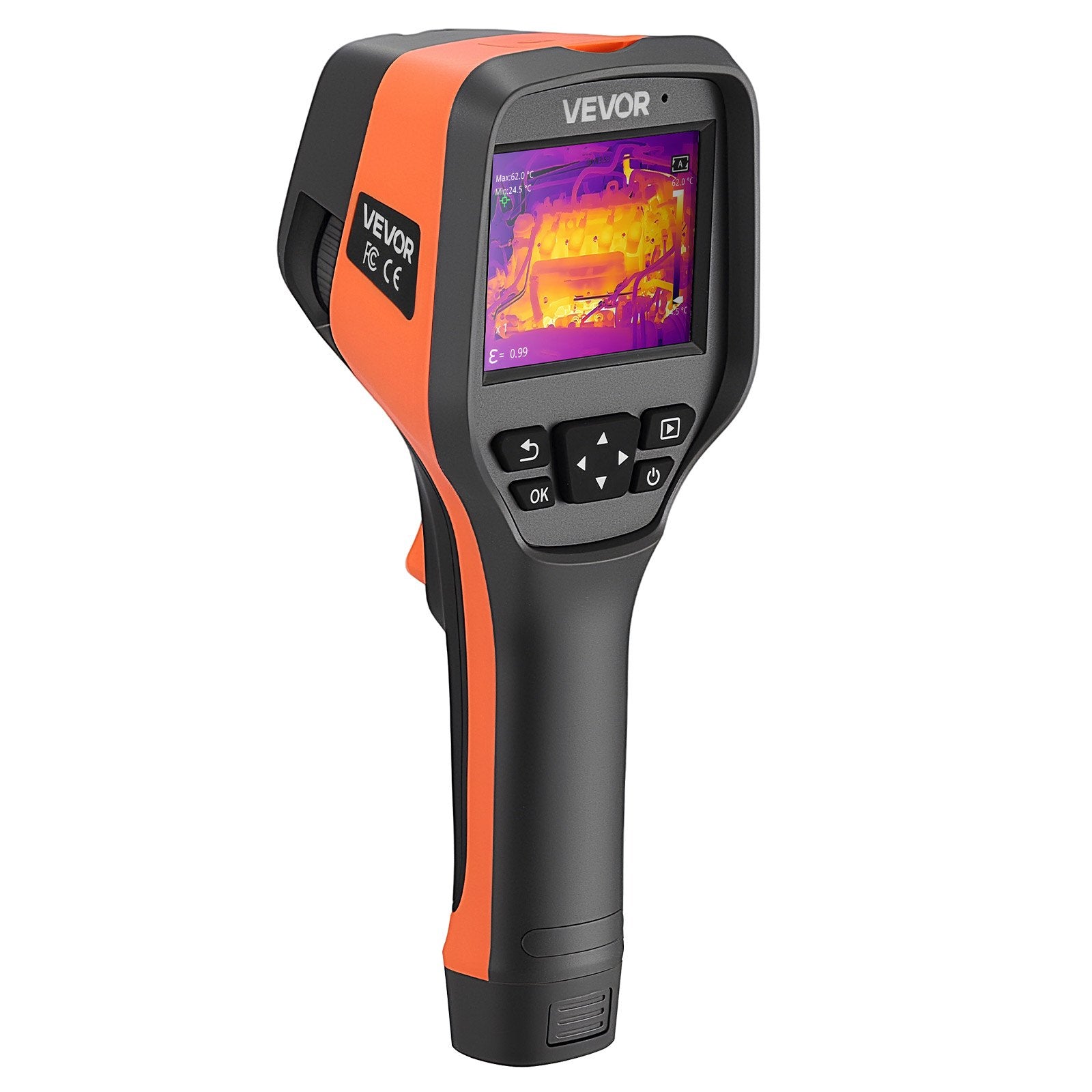

Thermal Camera, 384 x 288 IR Resolution, Handheld Thermal Imaging Camera with 5MP Visual Camera, 30HZ Refresh Rate Infrared Imager with 3.5-Inch Touch Screen, -4°F to 1022°F, WIFI Supported

Thermal Camera, 384 x 288 IR Resolution, Handheld Thermal Imaging Camera with 5MP Visual Camera, 30HZ Refresh Rate Infrared Imager with 3.5-Inch Touch Screen, -4°F to 1022°F, WIFI Supported

€1.401,95 EUR
€1.401,95 EUR
Sale Sold out
Taxes included.
Features & Details
  • High-Resolution Thermal Imager: Our handheld thermal imager is equipped with a 5MP visible light camera and 384 x 288 IR resolution, delivering sharper images to detect subtle heat variations. With a 43.7° x 31.9° FOV, 30Hz refresh rate, ≤35 mK thermal sensitivity, image sharpening algorithms, and an advanced AI chip, it captures heat details with exceptional clarity

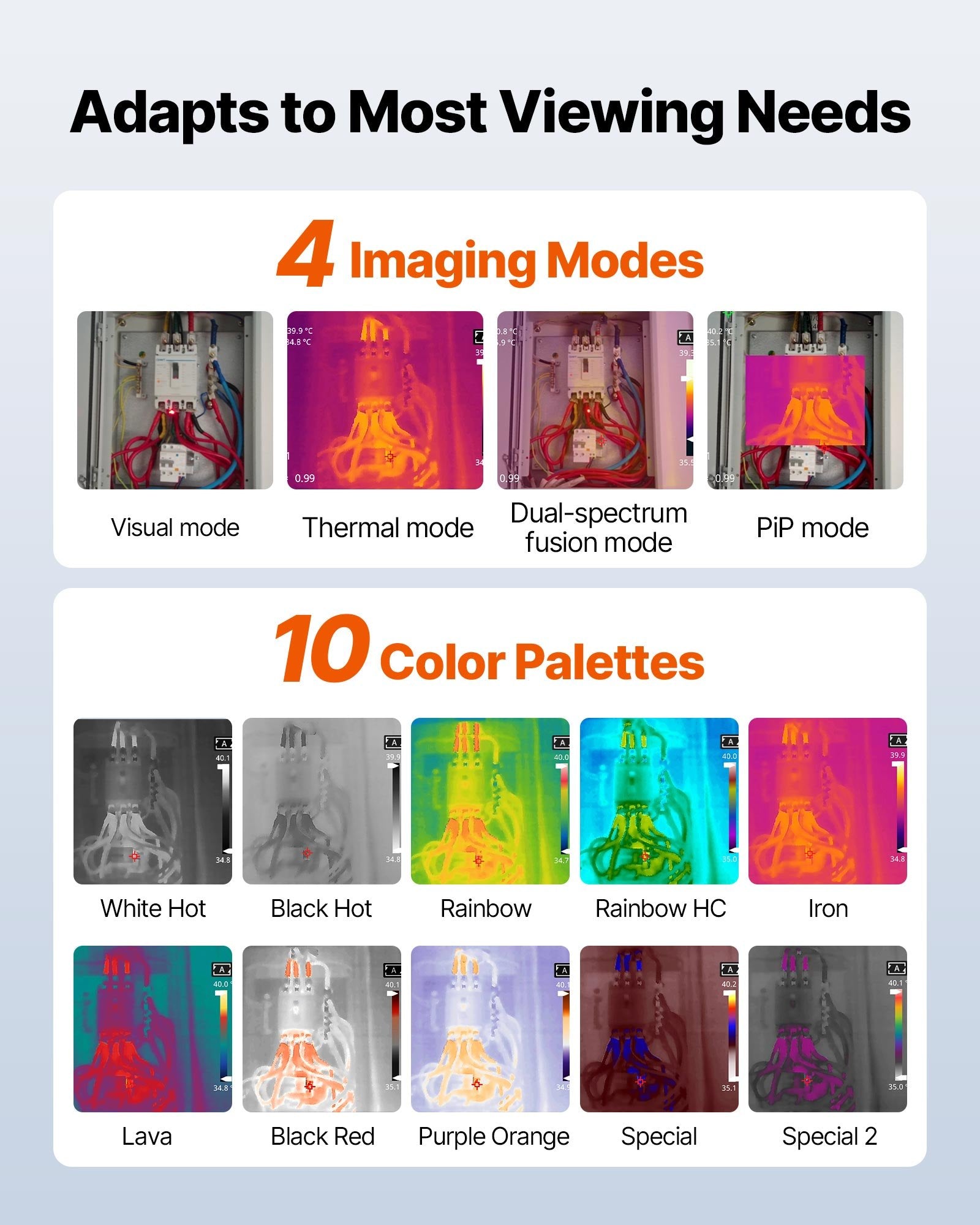

  • Precise Targeting & Temperature Measurement: The laser pointer of this infrared camera allows accurate heat source targeting, supporting a wide temperature range from -4°F to 1022°F. It automatically identifies and marks hot, cold, and center points. With 4 thermal imaging modes, 10 color palettes, and digital zoom (1x/2x/4x/8x) for enhanced observation, you can observe finer details in diverse scenarios
  • Quick Anomaly Detection: This infrared thermal imager has a 3.5-inch touchscreen that allows instant voice annotations. It is equipped with high/low temperature alarms that automatically monitor deviations and issue real-time alerts, helping you quickly detect overheating or cooling areas. With precise temperature anomaly detection, it easily pinpoints faults such as equipment overheating
  • Long-Lasting & Durable: Powered by 2 pieces of 5000mAh batteries, our thermal camera ensures extended runtime. With 32GB built-in storage, it saves over 120,000 images, supporting both photo and video recording. WiFi transfer and 13-language operation add convenience. Its lightweight, rugged design withstands 2m drops and meets IP54 water resistance, adapting to various environments
  • Convenient to Use: This thermal imaging camera is widely applicable for electrical inspections (distribution cabinets, cables, motors, transformers), HVAC (underfloor heating, leaks, AC maintenance, insulation checks), and pipelines (heat leaks or sewage systems)
Product Specification
  • Operating Temperature: 14℉ to 122℉ / -10℃ to 50℃
  • Measuring Distance: 0.3 – 3 m
  • Temperature Accuracy: ±2°C
  • Waterproof Rating: IP54
  • Infrared Resolution: 384 x 288 pixels
  • Temperature Display: Center / Hot / Cold Spot
  • Tripod Support: Supported (Standard 1/4-inch Thread)
  • Language Options: 13 Languages
  • Internal Storage: 32 GB
  • Temperature Measurement Range: -4℉ to 1022℉ / -20℃ to 550℃
  • Thermal Sensitivity: ≤ 35 mK
  • Emissivity: 0.01 – 1.0
  • Battery Capacity: 2 x 5000 mAh
  • Display Size: 3.5 inch
  • Item Model Number: SC384M
  • Focus Mode: Manual Focus
  • Frame Rate: 30 Hz
  • Drop Resistance: 2 m Drop Resistance
  • Visible Light Resolution: 2592 x 1944 pixels (5MP)
  • Net Weight: 7.8 lbs / 3.55 kg
  • Temperature Resolution: 0.1°C
  • Storage Temperature: -4℉ to 140℉ / -20℃ to 60℃
