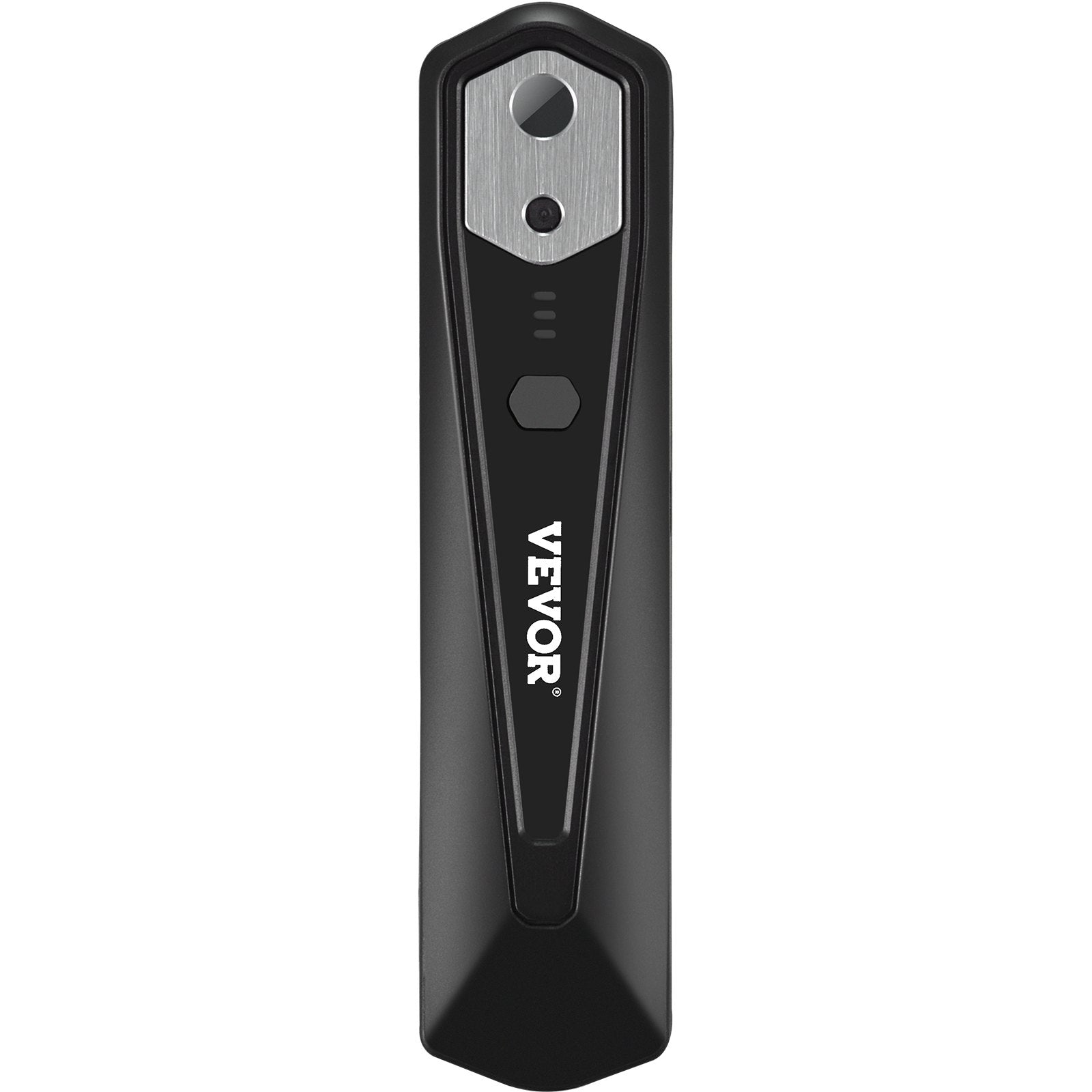

Thermal Imaging Camera for Android & IOS, 256 x 192 IR Resolution Wireless Infrared Thermal Imager with WiFi & Visual Camera, 25Hz Refresh Rate Thermal Camera for Smartphone, -4°F-1022°F, IP54
High-Definition Thermal Imaging: Experience crystal clear imaging with VEVOR thermal camera for Android & IOS, featuring 256 x 192 high IR resolution. It offers -4°F to 1112°F wide temperature range and 32.18°F / 0.1°C thermal sensitivity, allowing for precise temperature measurement and capturing even the subtlest temperature variations.

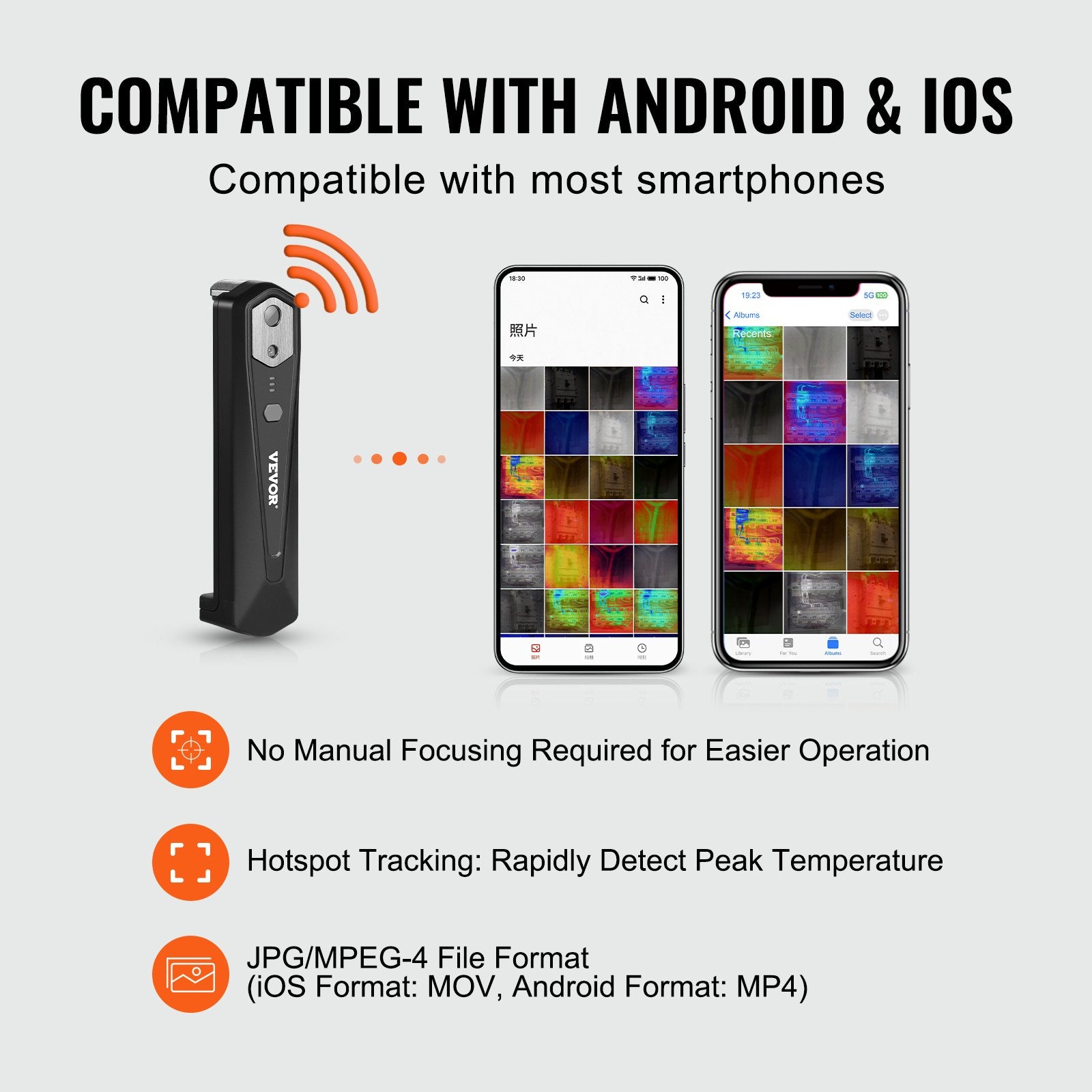

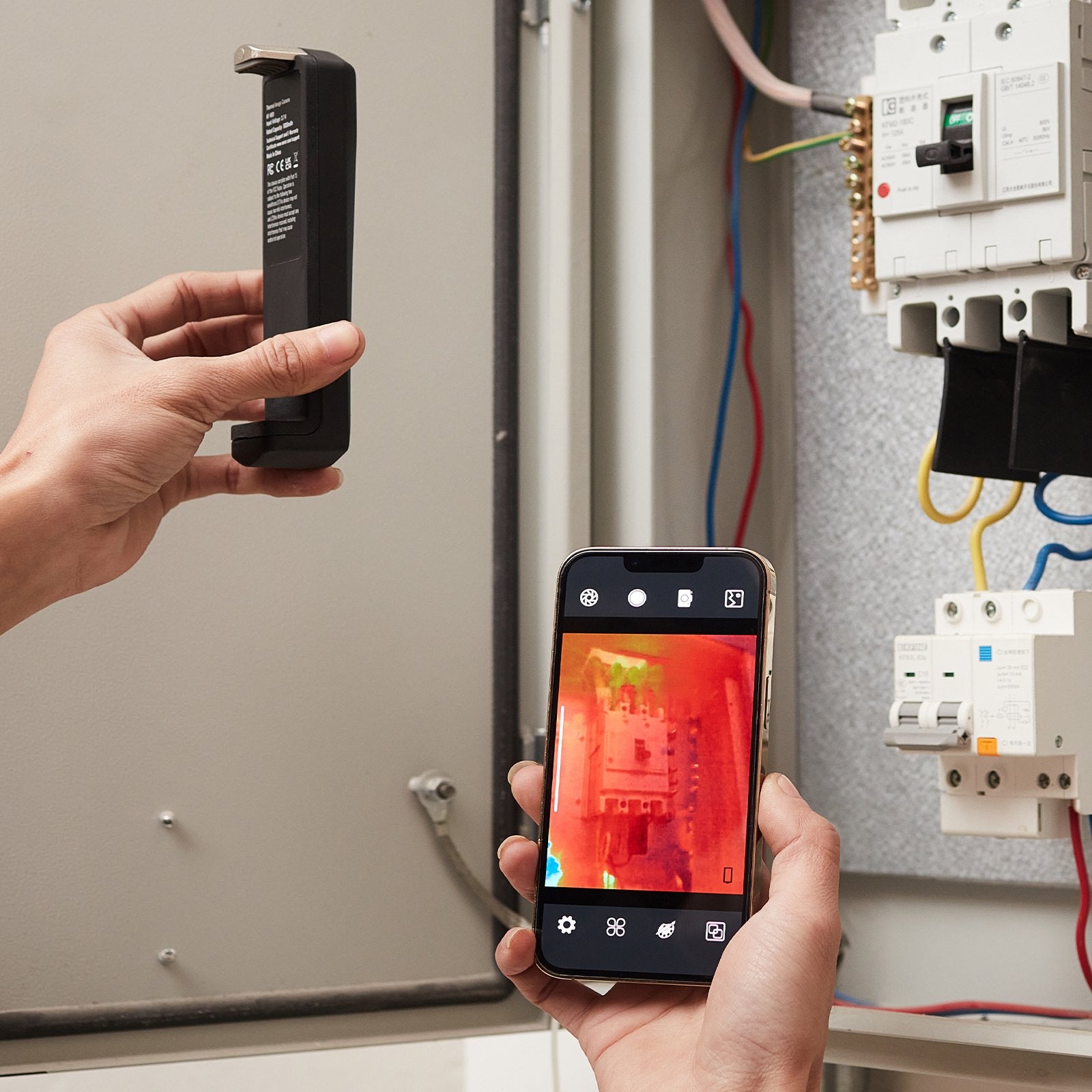

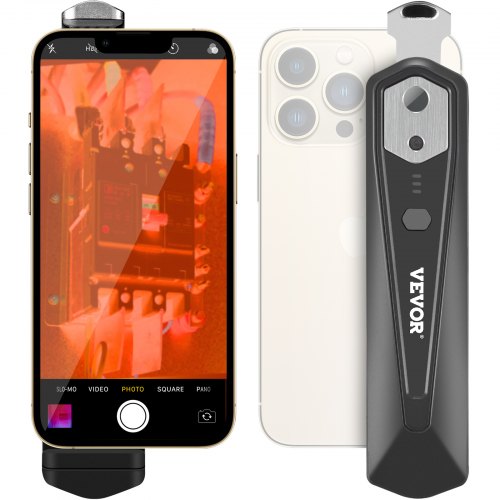

Android & IOS Compatibility: This thermal imaging camera can connect wirelessly to Android and IOS smartphone, allowing you to inspect around obstacles and measure targets from a safe distance. Its portability and flexibility make it ideal for home repairs, circuit diagnostics, building inspections, security monitoring, and more.

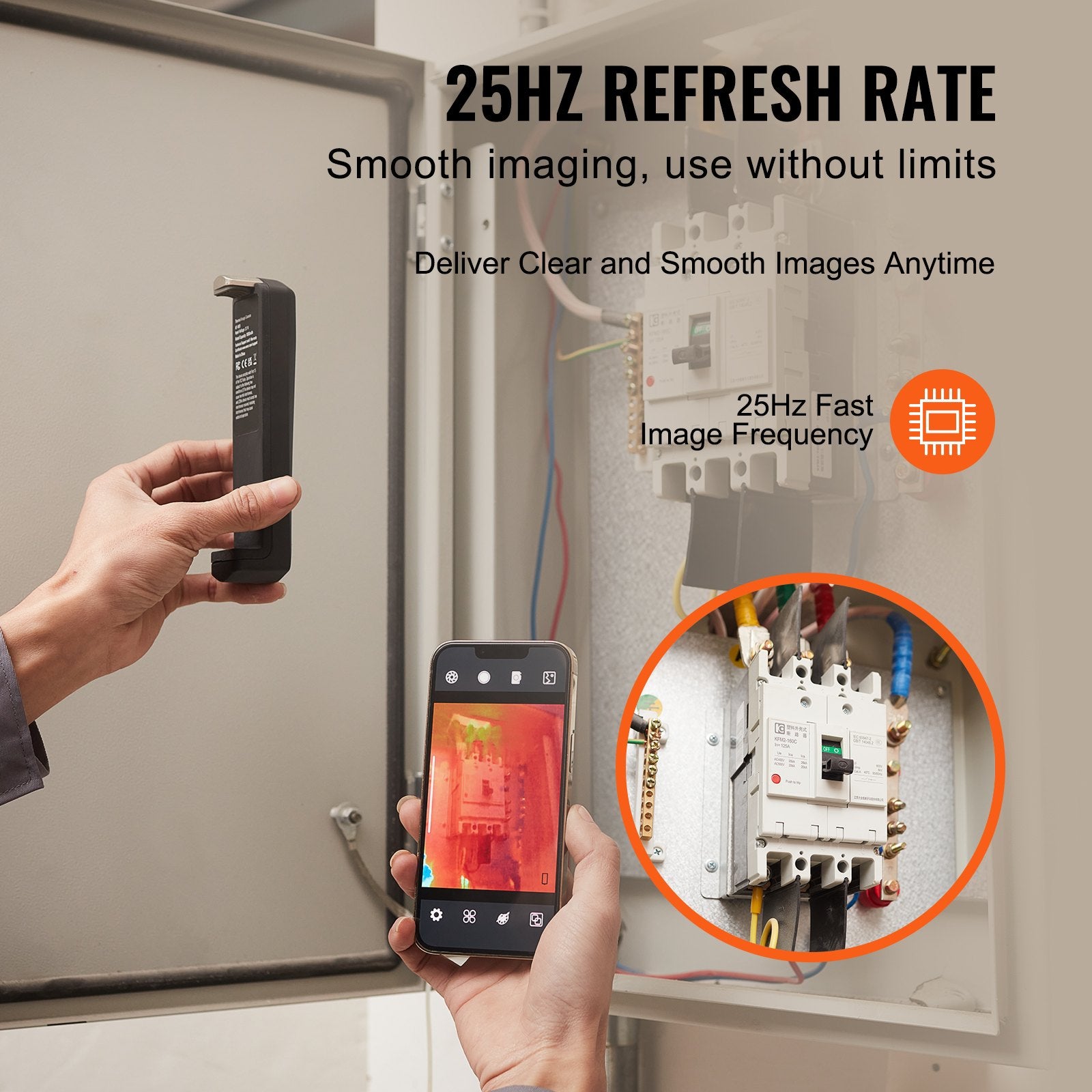

Real-Time Insights: The 25Hz refresh rate ensures smooth image streaming and lag-free thermal imaging, providing real-time insights into temperature changes and thermal patterns. No crucial details are missed, even during fast movements or transient events.

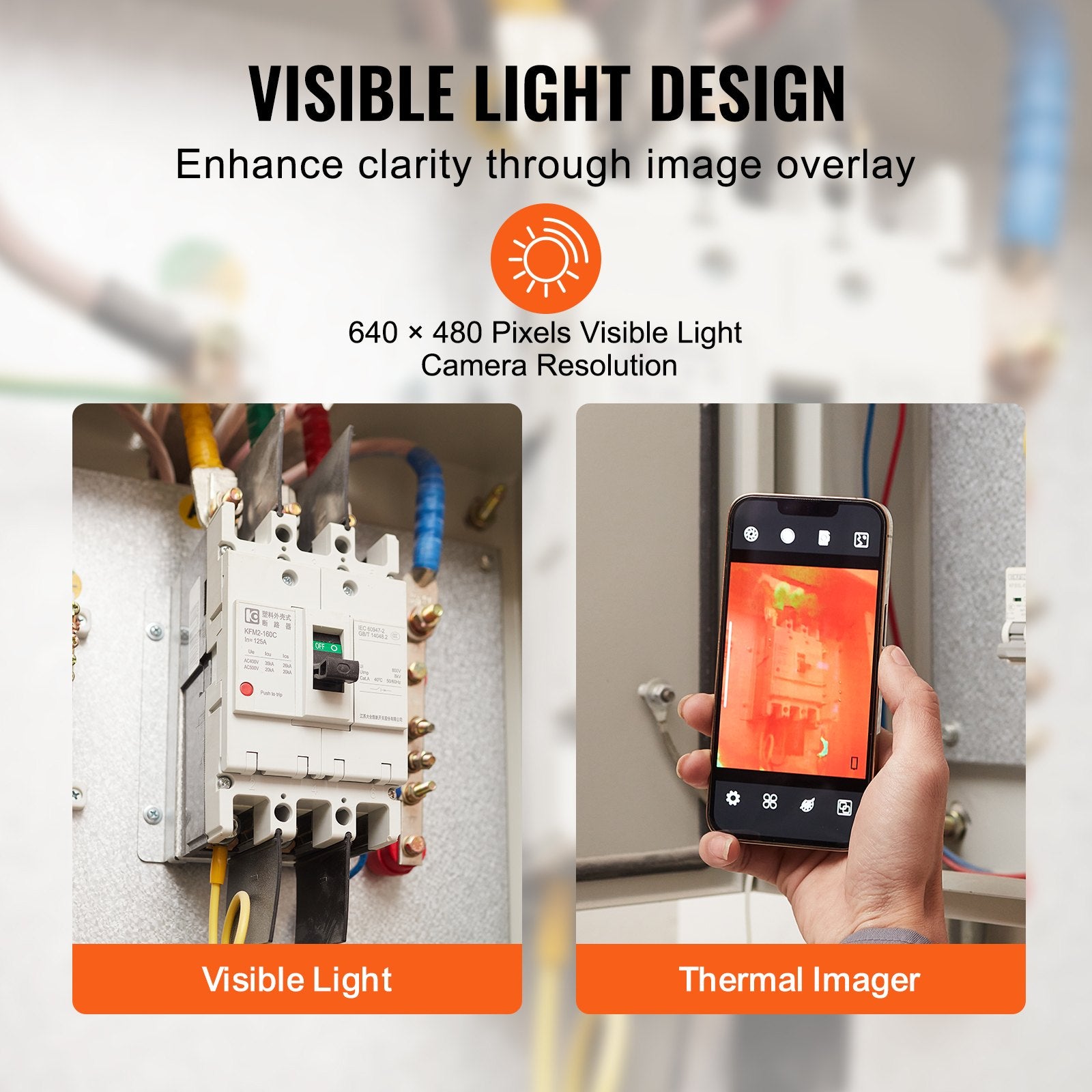

Convenient Visible Light: Our infrared thermal imager combines 256 x 192 IR thermal imaging with 640×480 pixels visible light. Easily overlay thermal and visible light images to better understand temperature distribution and target appearances for better target differentiation.

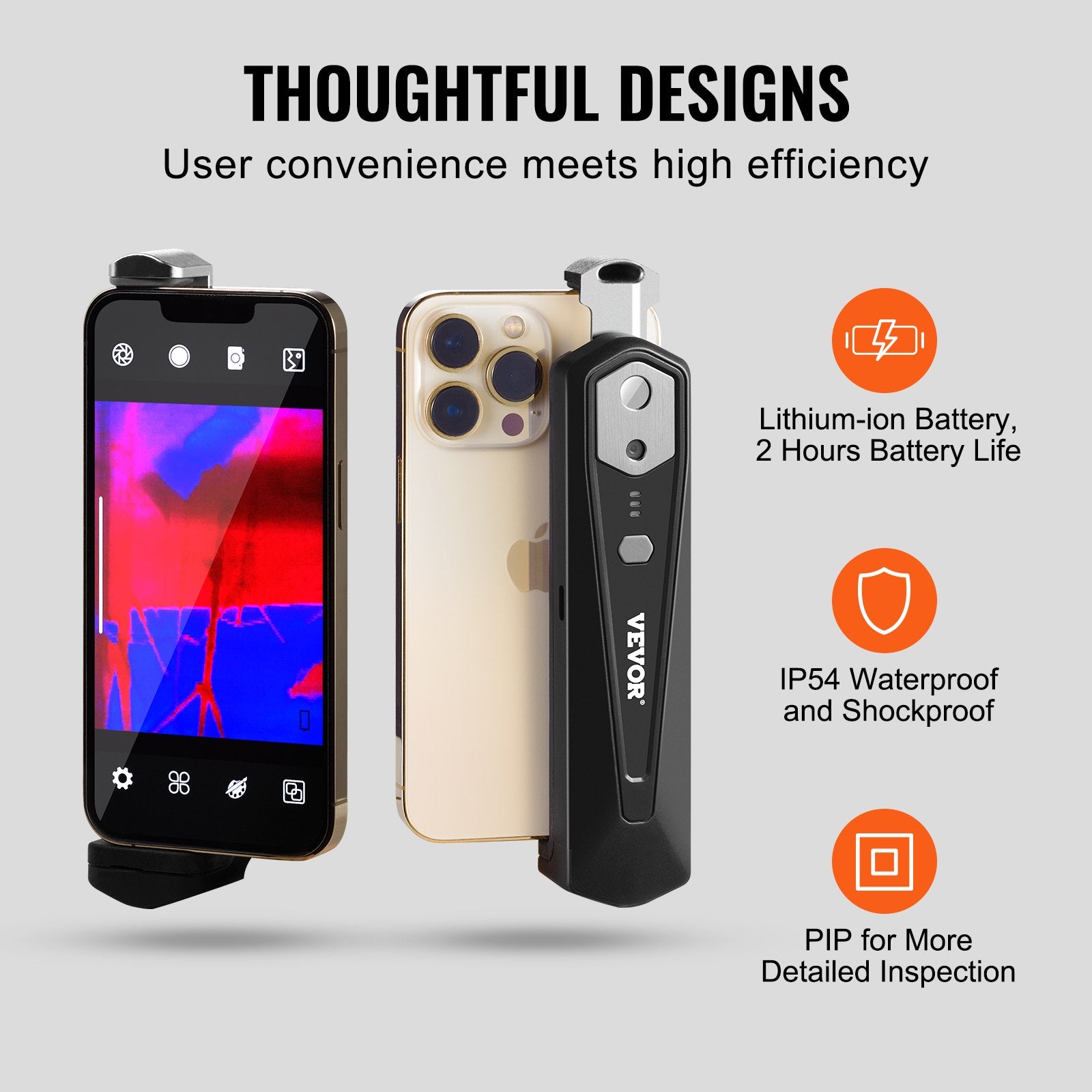

Thoughtful Details Refined: This thermal imager for Android & IOS is optimized with numerous user-friendly features: wireless data transfer, hotspot tracking support, high-capacity lithium-ion battery, PIP mode, IP54 rated protection, and no need for manual focusing.

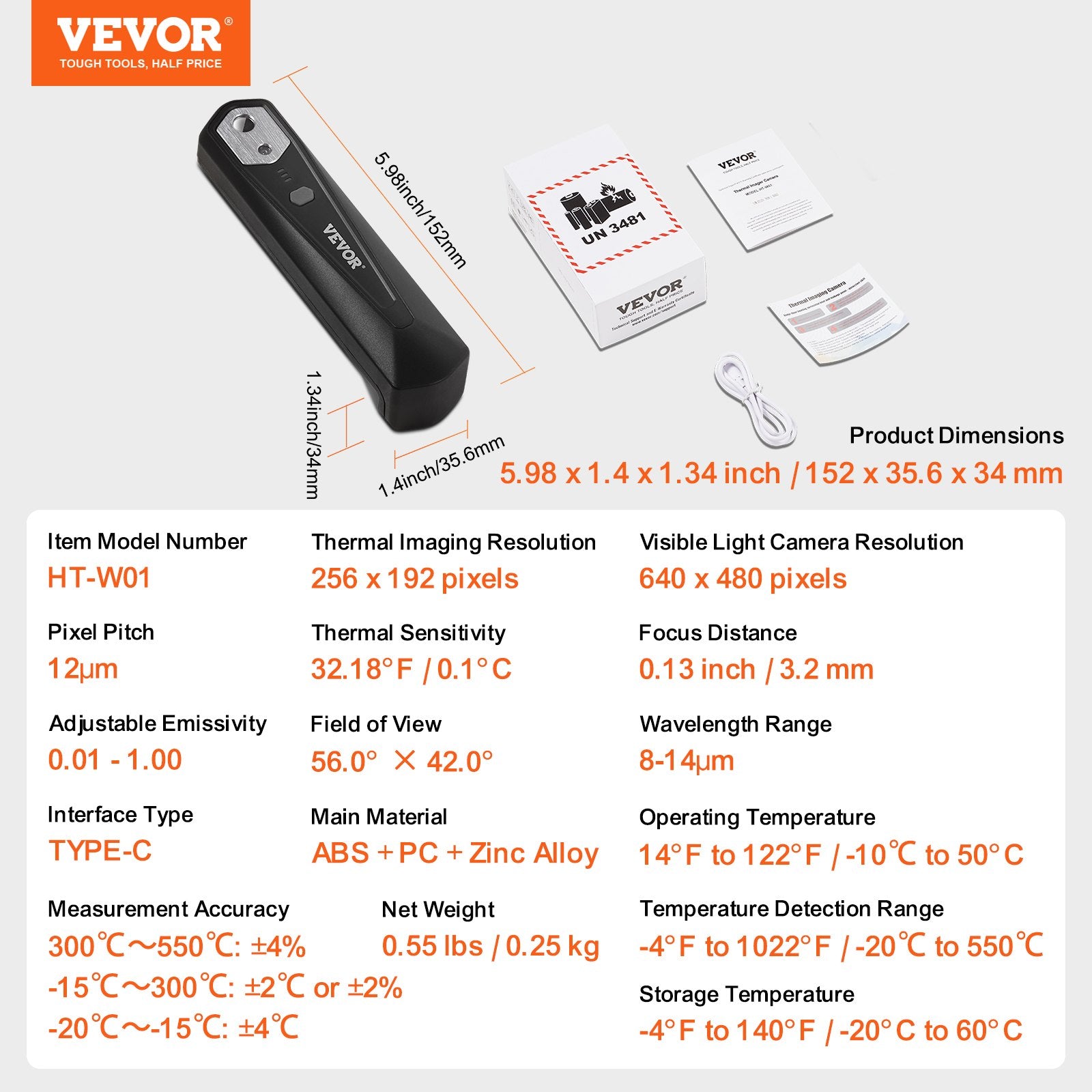

Product Specification
Operating Temperature: 14°F to 122°F / -10℃ to 50°C
Thermal Imaging Resolution: 256 x 192 pixels
Adjustable Emissivity: 0.01 - 1.00
Temperature Measurement Accuracy: 300℃～550℃: ±4% ; -15℃～300℃: ±2℃ or ±2% ; -20℃～-15℃: ±4℃
Visible Light Camera Resolution: 640 x 480 pixels
Product Dimensions: 5.98 x 1.4 x 1.34 inch / 152 x 35.6 x 34 mm
Temperature Detection Range: -4°F to 1022°F / -20℃ to 550℃
Pixel Pitch: 12μm
Thermal Sensitivity: 32.18°F / 0.1°C
Item Model Number: HT-W01
Focus Distance: 0.13 inch / 3.2 mm
Field of View: 56.0° × 42.0°
Interface Type: TYPE-C
Net Weight: 0.55 lbs / 0.25 kg
Wavelength Range: 8-14μm
Main Material: ABS + PC + Zinc Alloy
Storage Temperature: -4°F to 140°F / -20°C to 60°C
