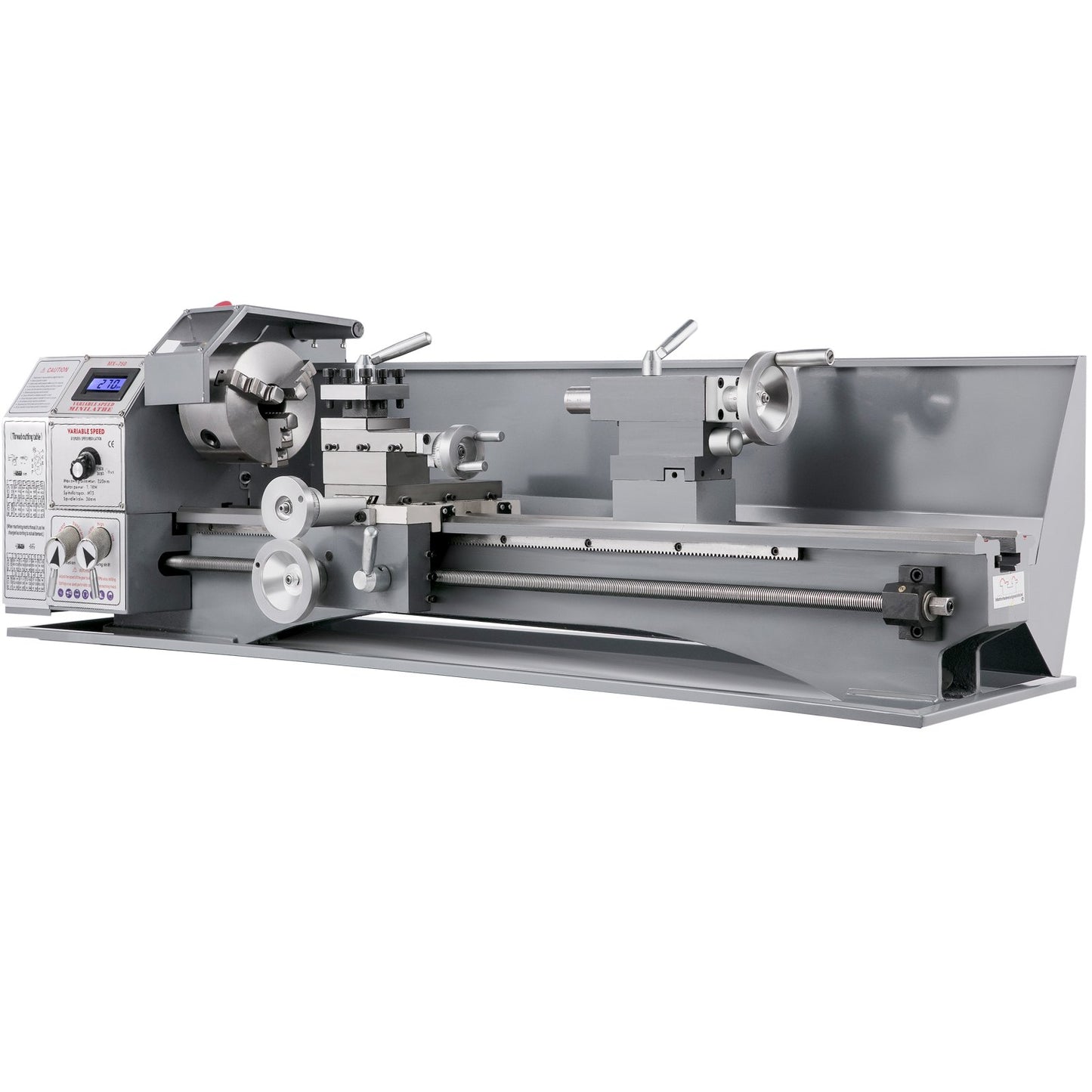

Mini Metal Lathe 750W Variable Speed Metal Lathe 50 to 3000Rpm Milling Precision Lathe 220 x 600mm for Metal Metal Lathe for Counter Face Turning Driling
Infinitely Variable Speed: The mini metal lathe is driven by brushless motor with Power: 750W. Variable Speed(Rpm): 50-3000±10%. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spindle rotation. Operate either manually or with the adjustable auto feed rate.
600 mm Large Swing Range: The bench top lathe brings a 3-jaw Chuck with Diameter: 4.9"/125 mm. Swing Over Bed: 8.7"/220 mm and Swing Over Cross Slide: 23.6"/600 mm offers more possibilities for large size or/and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8-44 T.P.I.
Professional Compound Rest: The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest, moving blades freely with feed rod. Heat hardening lead screw can be reversed in three speeds by turning the two handles under the variable speed rotary button.
Supportive & Protective: Steady rest works as an end support, ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpices. Backsplash guard included. It features a digital screen clearly showing the rotational speed, ensuring precise and smooth operation.
Adjustable Tailstock: Taper in Tailstock Spindle: MT2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
Product Specification
Phase: Single Phase
Distance Between Centers: 23.6" / 600 mm
Volt: 220V 50Hz
Range of Longitudinal Feed: 0.02" - 0.1" / 0.5 - 3 mm
Hole Through Spindle: 1.5" / 38 mm
Taper of Tailstock: MT#2
Taper of Spindle: MT#5
Swing Over Bed: 8.7" / 220 mm

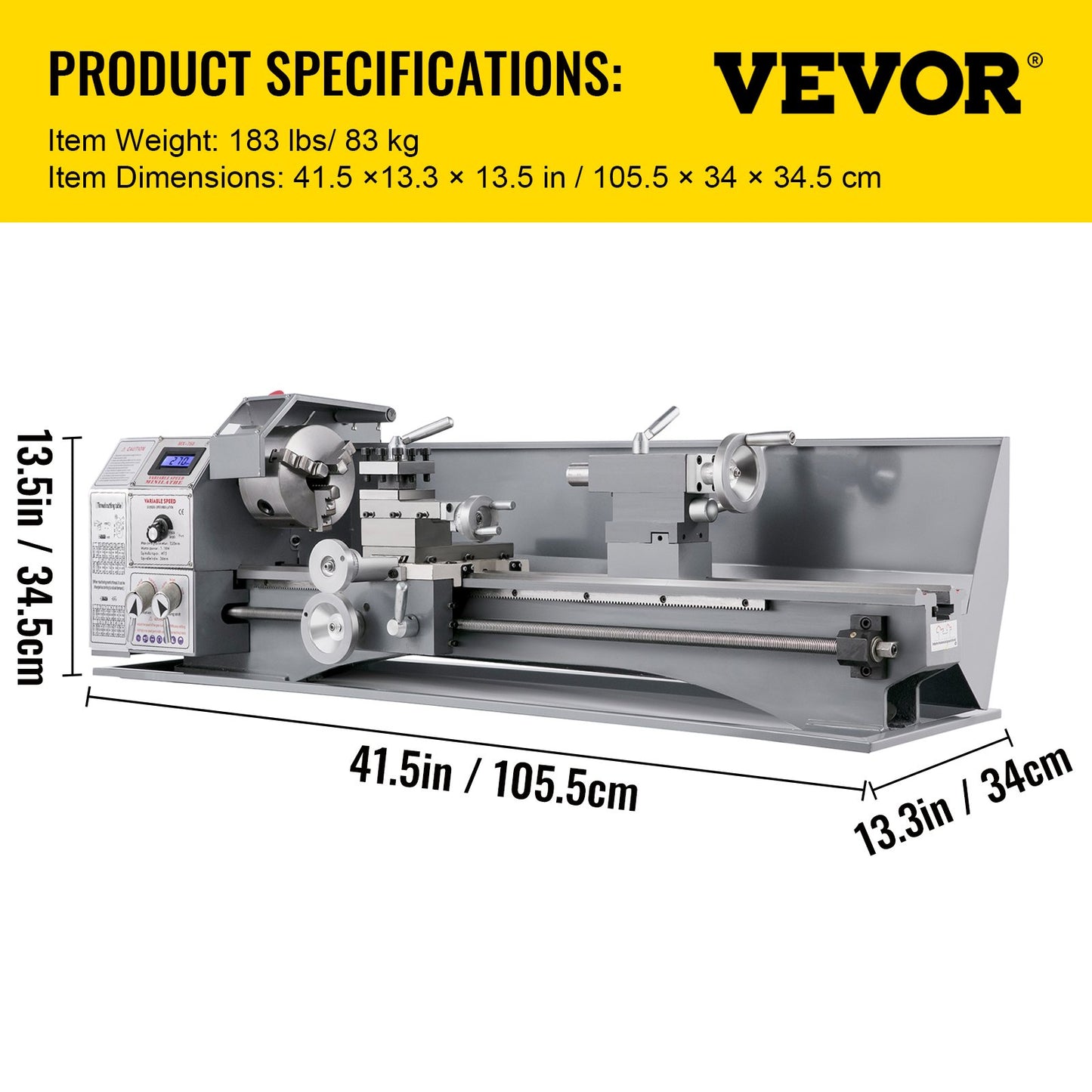

Item Dimension: 41.5 × 13.3 × 13.5 in / 105.5 × 34 × 34.5 cm
