Box and Pan Brake, 305 mm/12 inch Sheet Metal Bending Brake, 20-Gauge Mild Steel Capacity, 0-135 Degree Adjustable, Metal Bender Machine with 5 Fingers, Heavy-Duty Aluminum Folder for Precise Bending

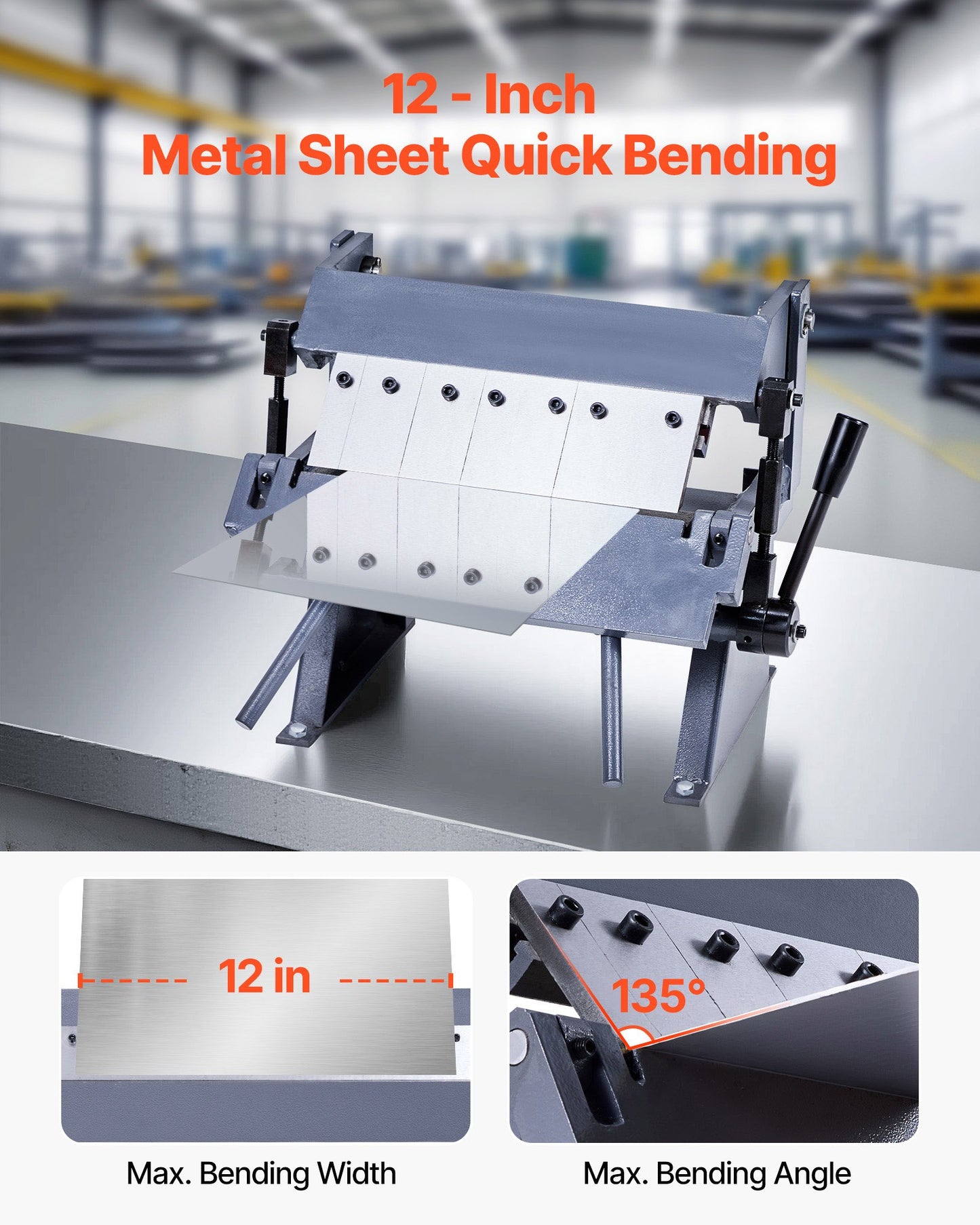

12-Inch Bending Capacity: This compact sheet metal brake bends metal sheets up to 12 in wide at angles from 0° to 135°, making it ideal for small-scale DIY jobs and workshop use.
Versatile Material Compatibility: Our box and pan brake supports a variety of materials, including mild steel, stainless steel, copper, and aluminum. It can efficiently bend 20-gauge (1.0 mm) mild steel sheets.

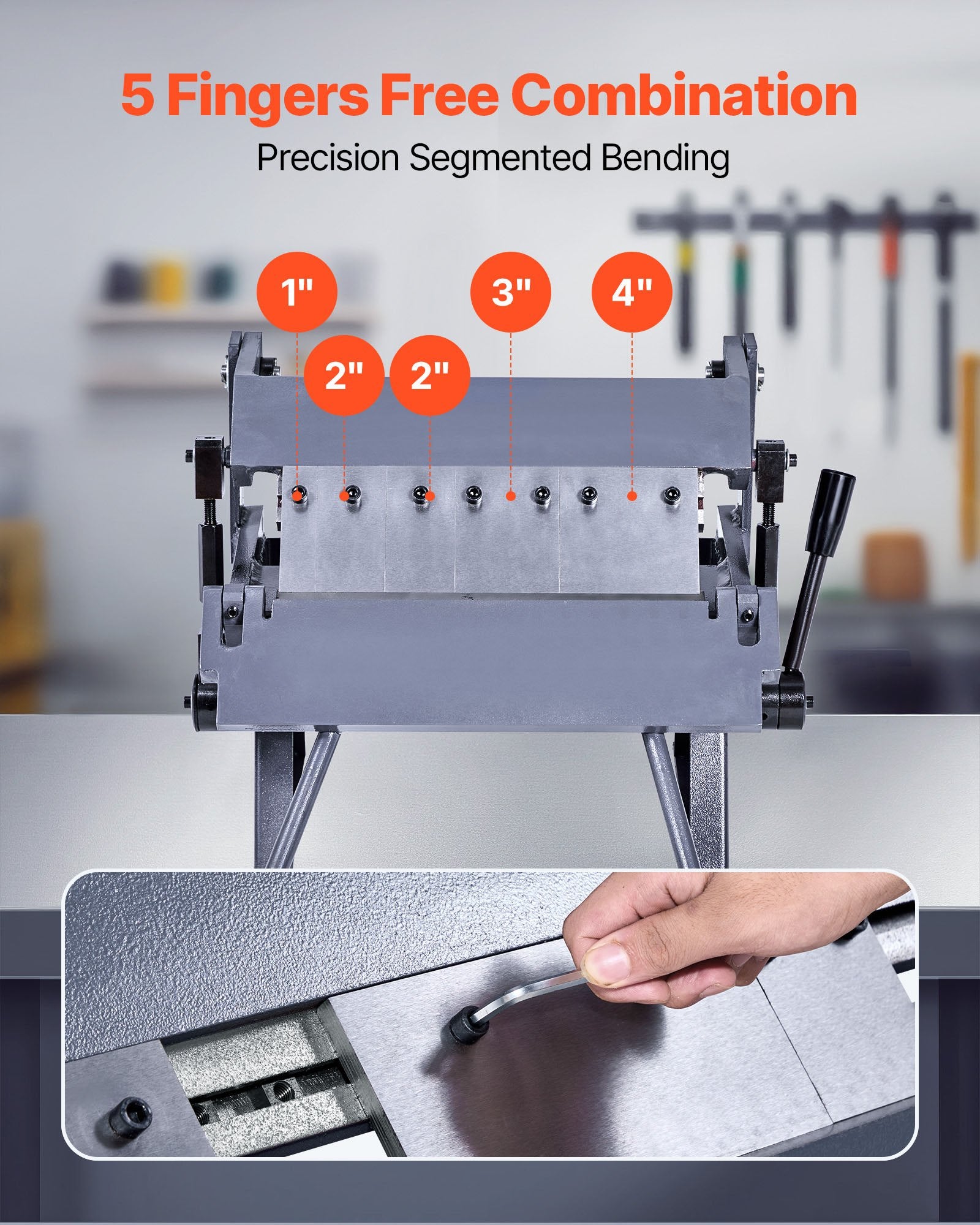

Segmented finger Design: The sheet metal bender comes with five segmented fingers (1", 2", 2", 3", 4") that can be arranged freely for flexible bending. Great for forming side panels, flanges, and box structures for electrical cabinets, housings, and ductwork.

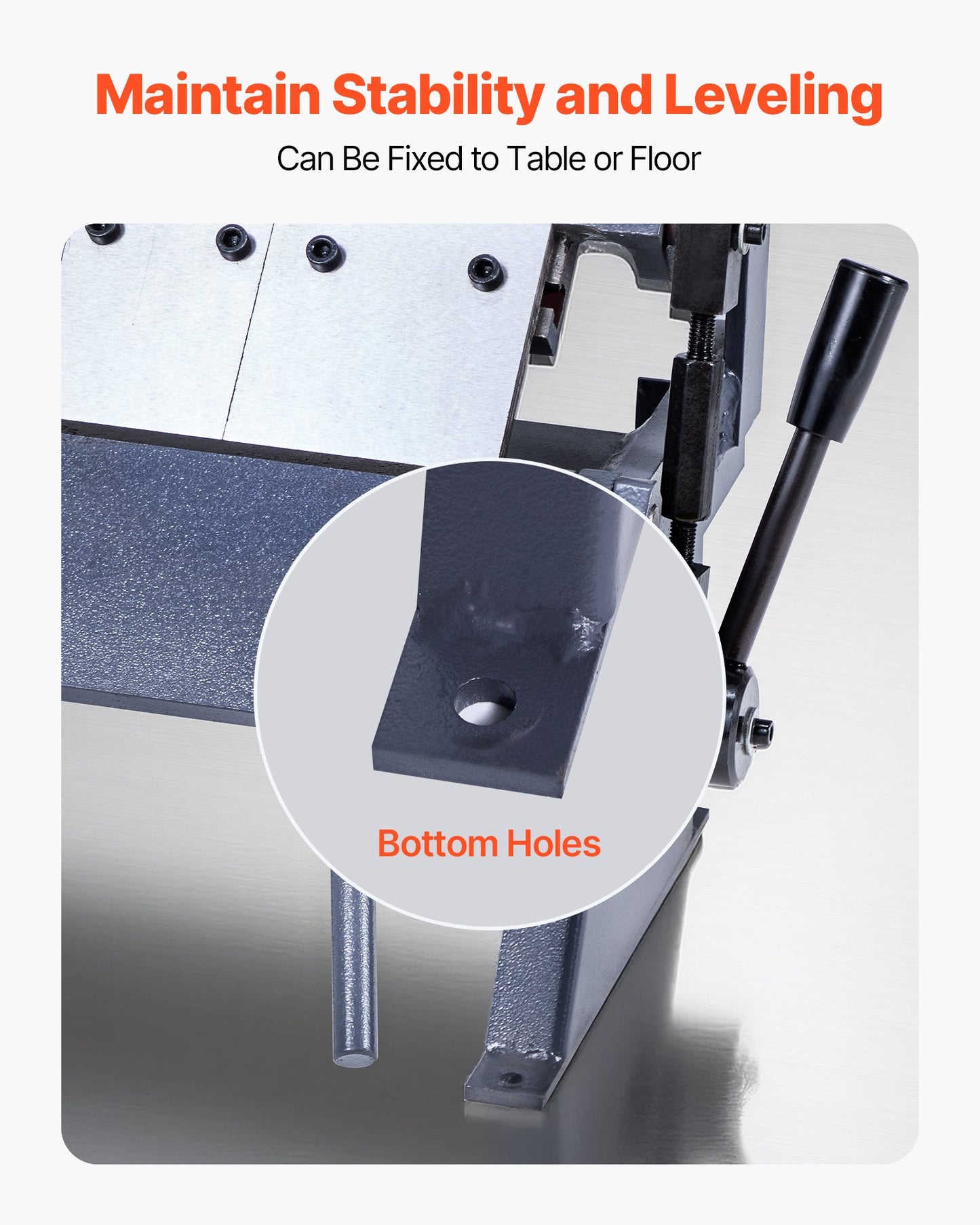

Secures Firmly in Place: The metal bending machine features pre-drilled mounting holes at the base that allows you to anchor the brake to your workbench or floor using screws. Prevents shifting during use for more accurate, hands-free bending.

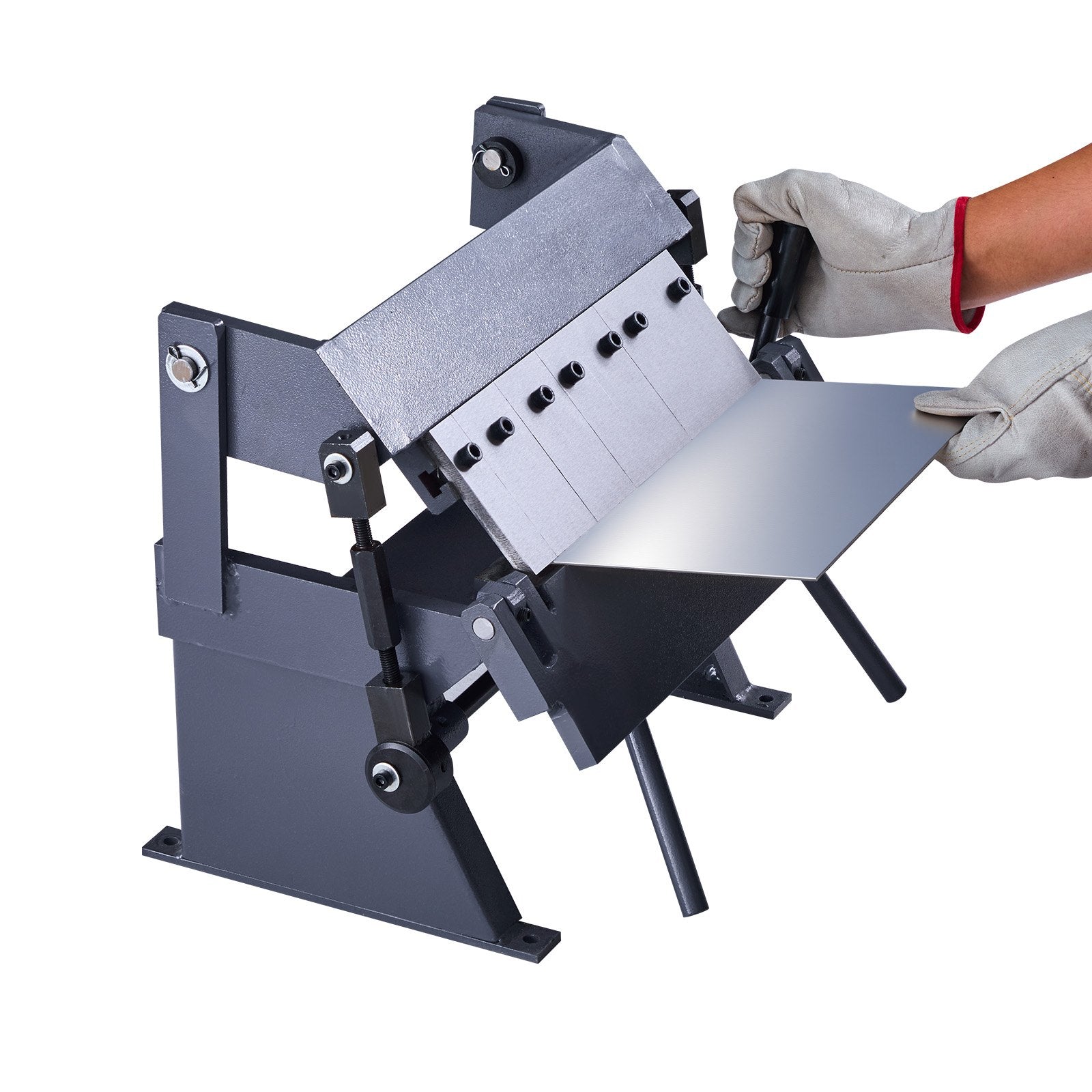

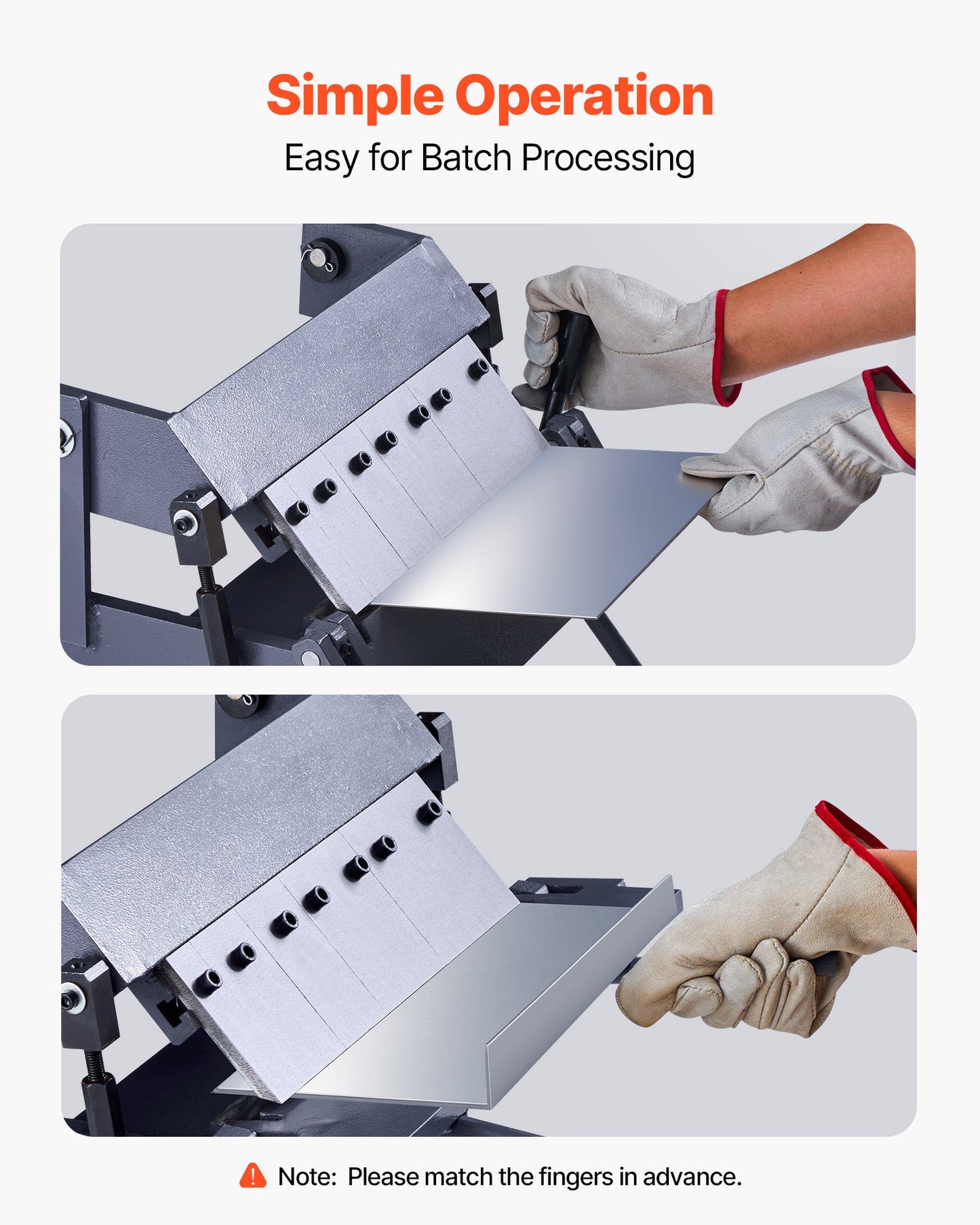

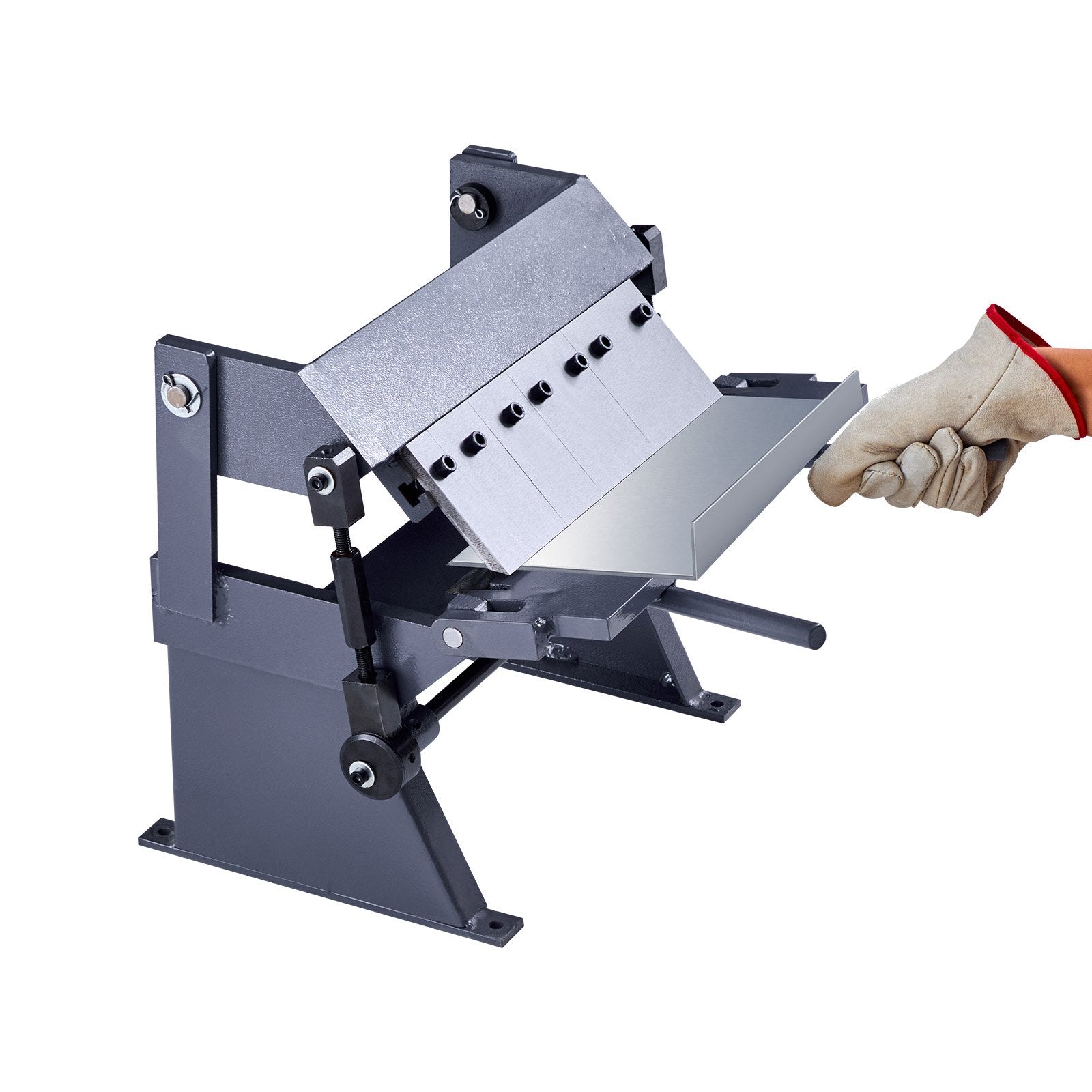

Easy Operation: It is easy to operate the aluminum brake bender. Simply lift the clamping handle, place the sheet metal, and lower the handle to secure it. Then, slowly raise the lever to the desired angle. Angle adjustments are manual, and keep in mind that all metal bending will experience springback (e.g., for a 90° bend, set the angle to 92°).

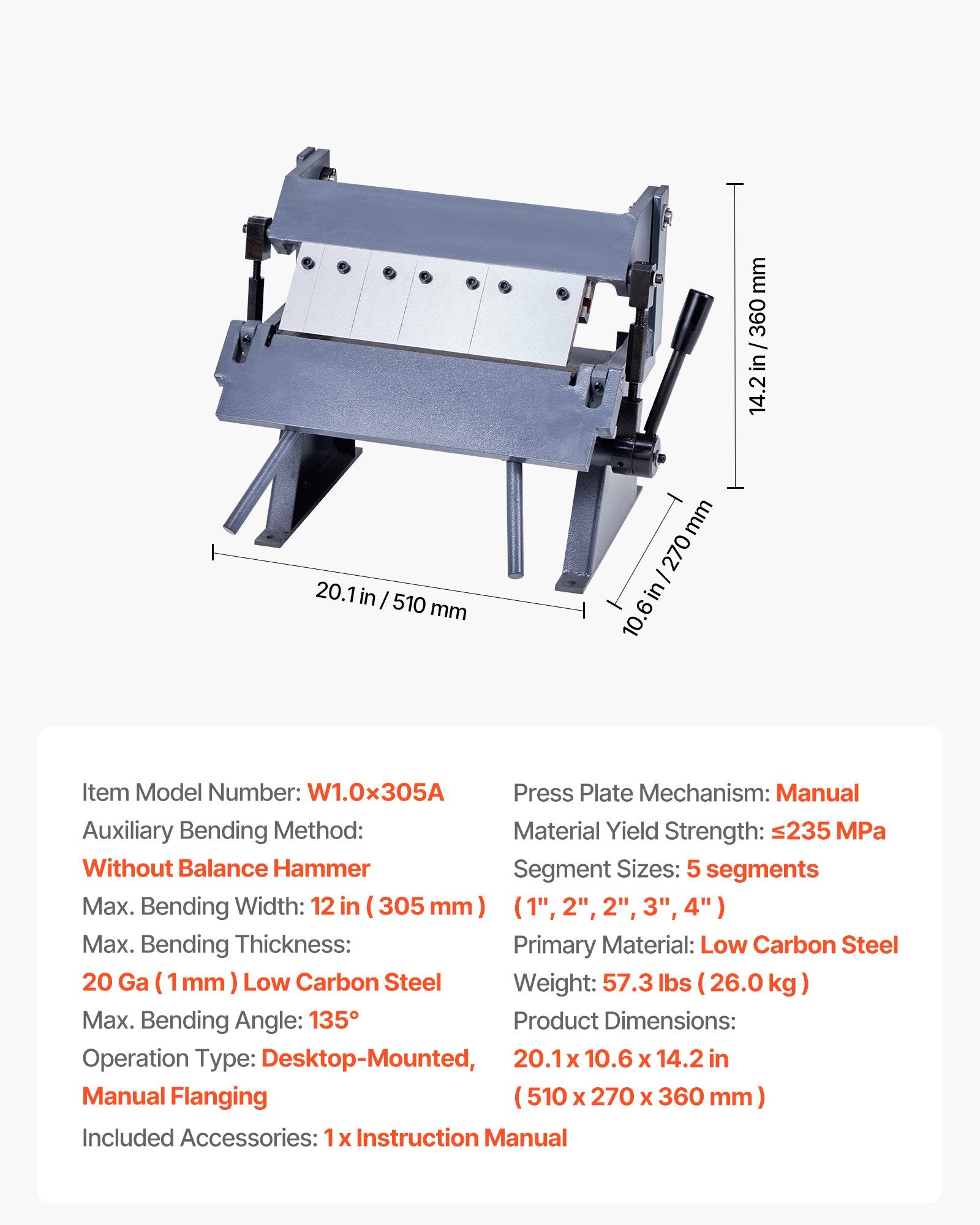

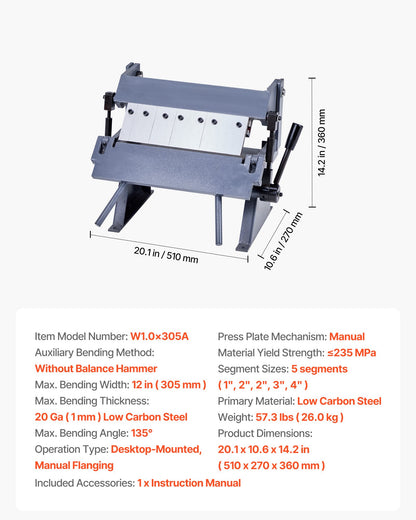

Product Specification
Press Plate Mechanism: Manual
Item Model Number: W1.0×305A
Max. Bending Thickness: 20 Ga (1 mm) Low Carbon Steel
Max. Bending Angle: 135°
Segments: 5 (1", 2", 2", 3", 4")
Material: Low Carbon Steel
Max. Bending Width: 12 in (305 mm)
Material Yield Strength: : ≤235 MPa
Mounting Type: Desktop-Mounted, Manual Flanging
Product Dimensions: 20.1 x 10.6 x 14.2 in (510 x 270 x 360 mm)
