CNC 3018 Pro 300×180×45mm CNC Machine GRBL Control Mini Engraver with Offline Controller 3 Axis Engraving Machine for Carving Milling Plastic Acrylic PVC Wood

Name: CNC 3018 Pro 300×180×45mm CNC Machine GRBL Control Mini Engraver with Offline Controller 3 Axis Engraving Machine for Carving Milling Plastic Acrylic PVC Wood
Brand: ExtraShop
SKU: DKJ3018PROJCK0001V2
Price: 221.95 EUR
Availability: InStock

€221,95 EUR

Sale Sold out

Taxes included.

Features & Details

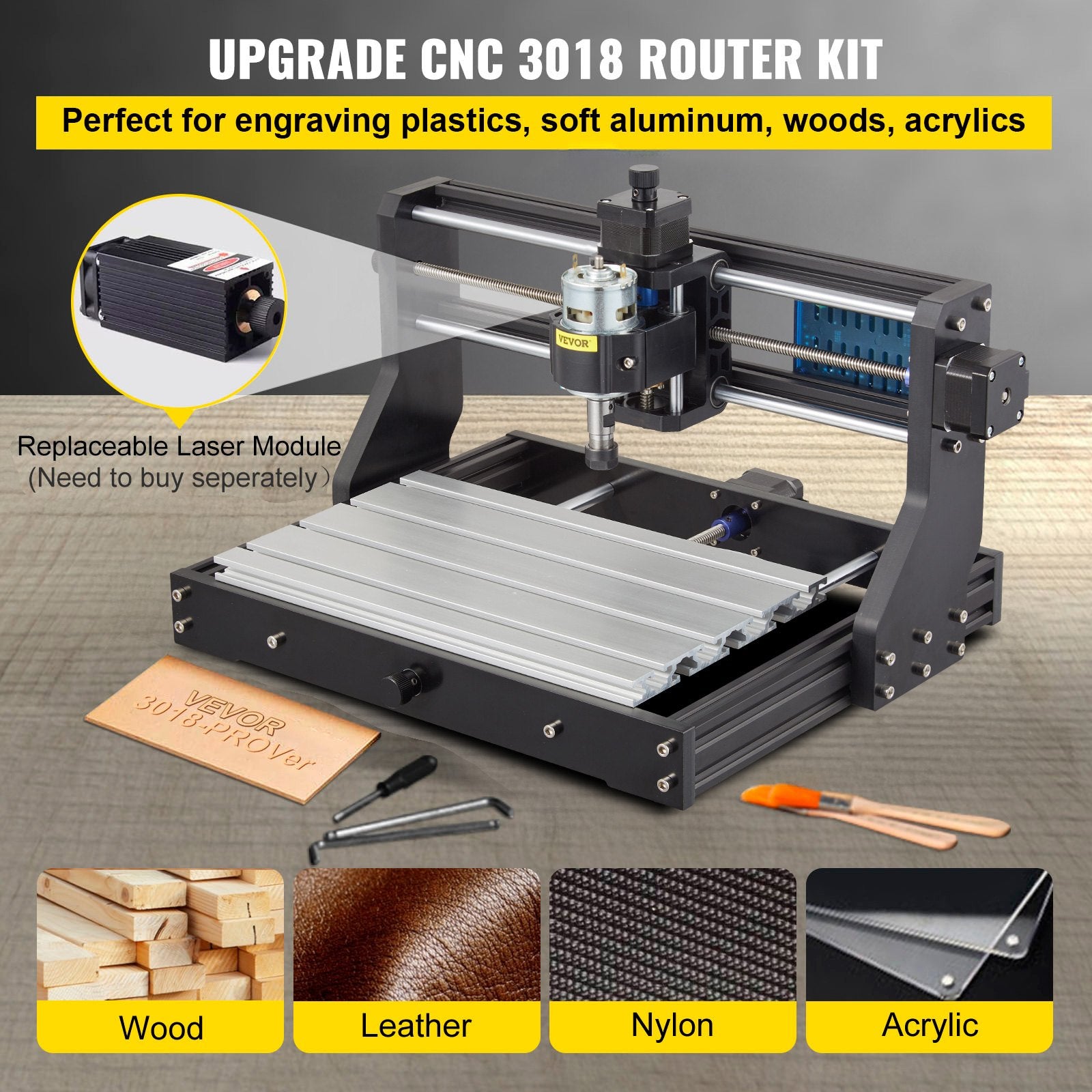

CNC 3018 Router Machine: CNC 3018 PRO is an upgraded version of 3018 CNC. We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions. You can enjoy the delight of engraving foam, wood, plastic, acrylic, resin, carbon fiber, and many more. This product does not include a laser head and can be purchased by yourself.

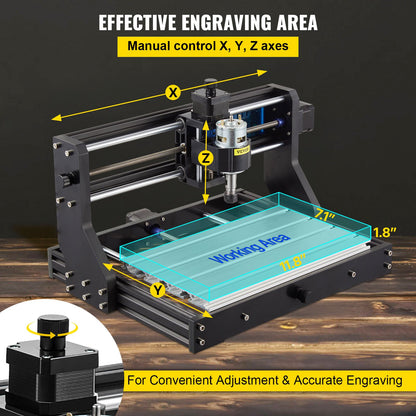

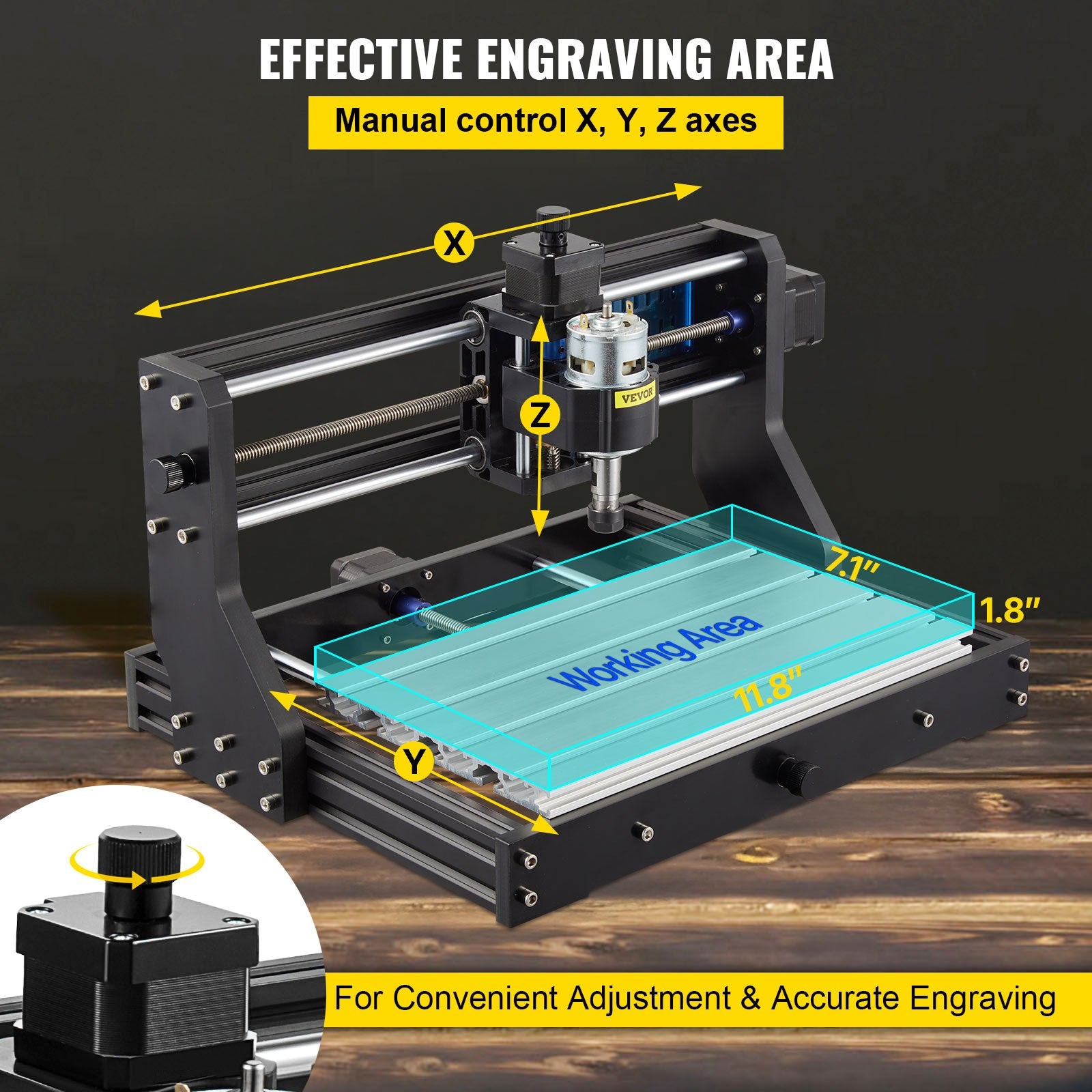

Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.

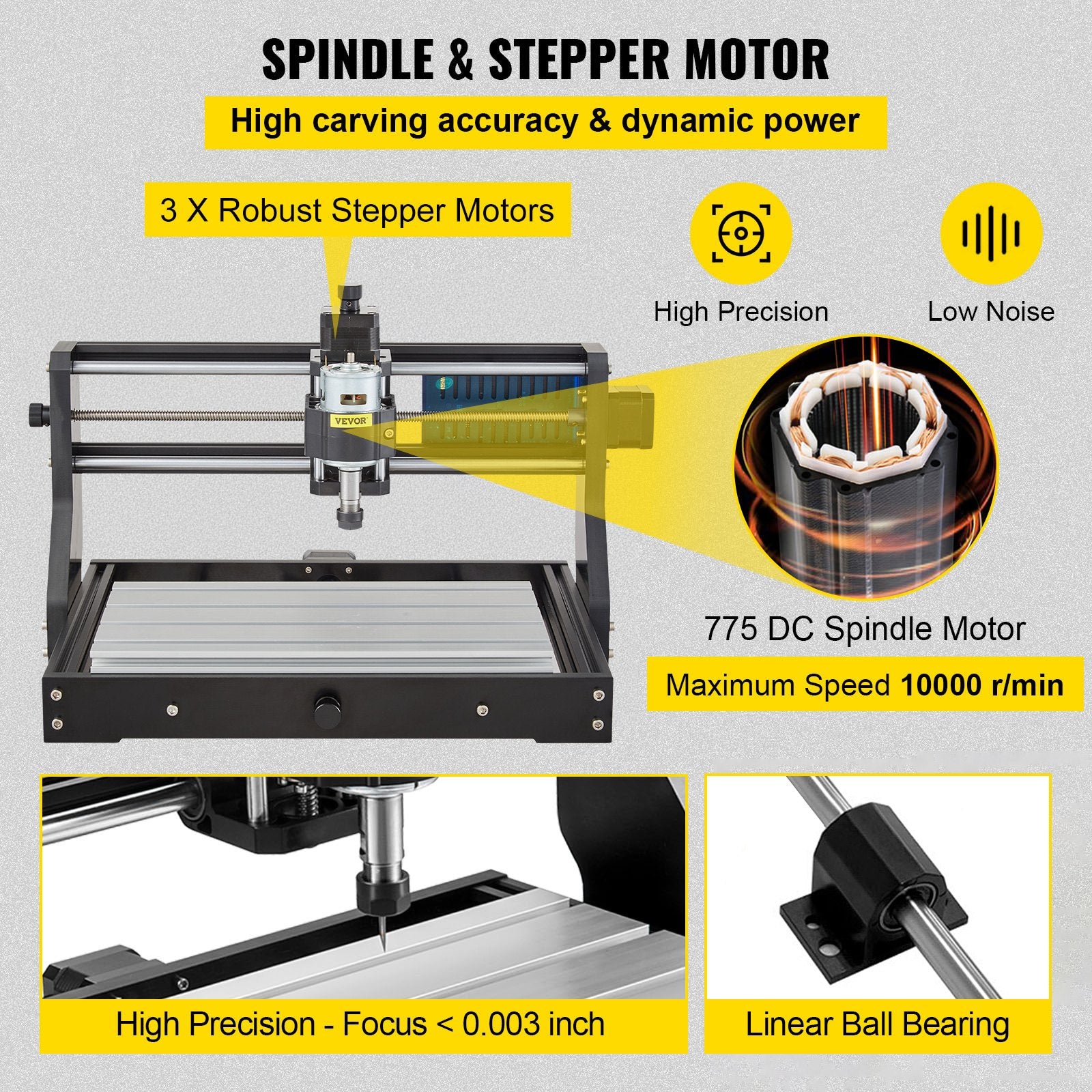

Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.32 Nm torque) and 775 DC 24V spindle motors with a rotational speed of 10,000 r/min. The CNC engraving machine software supports executing standard G-code machining files for tool-based engraving and cutting, such as relief carving and various tool path operations.

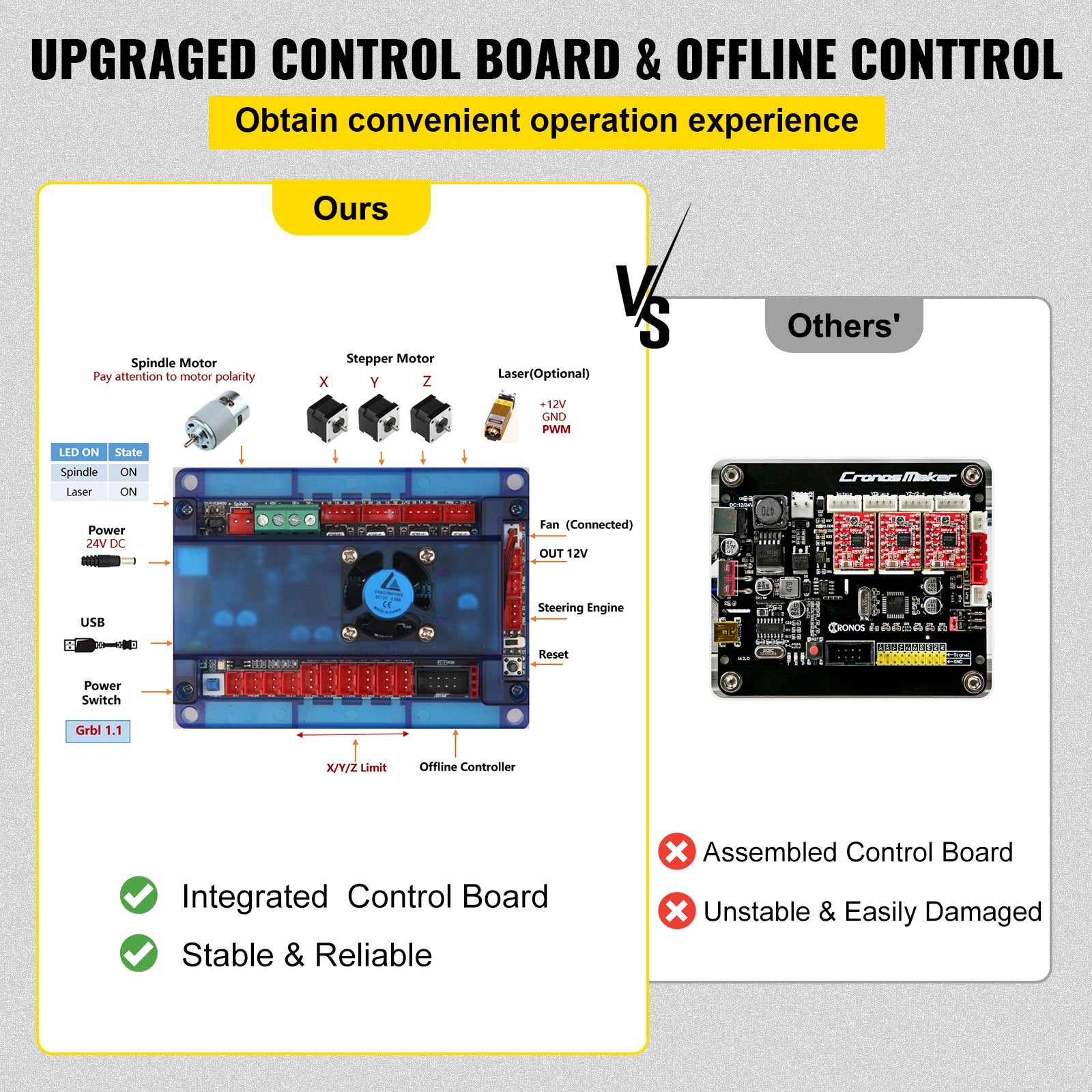

Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.

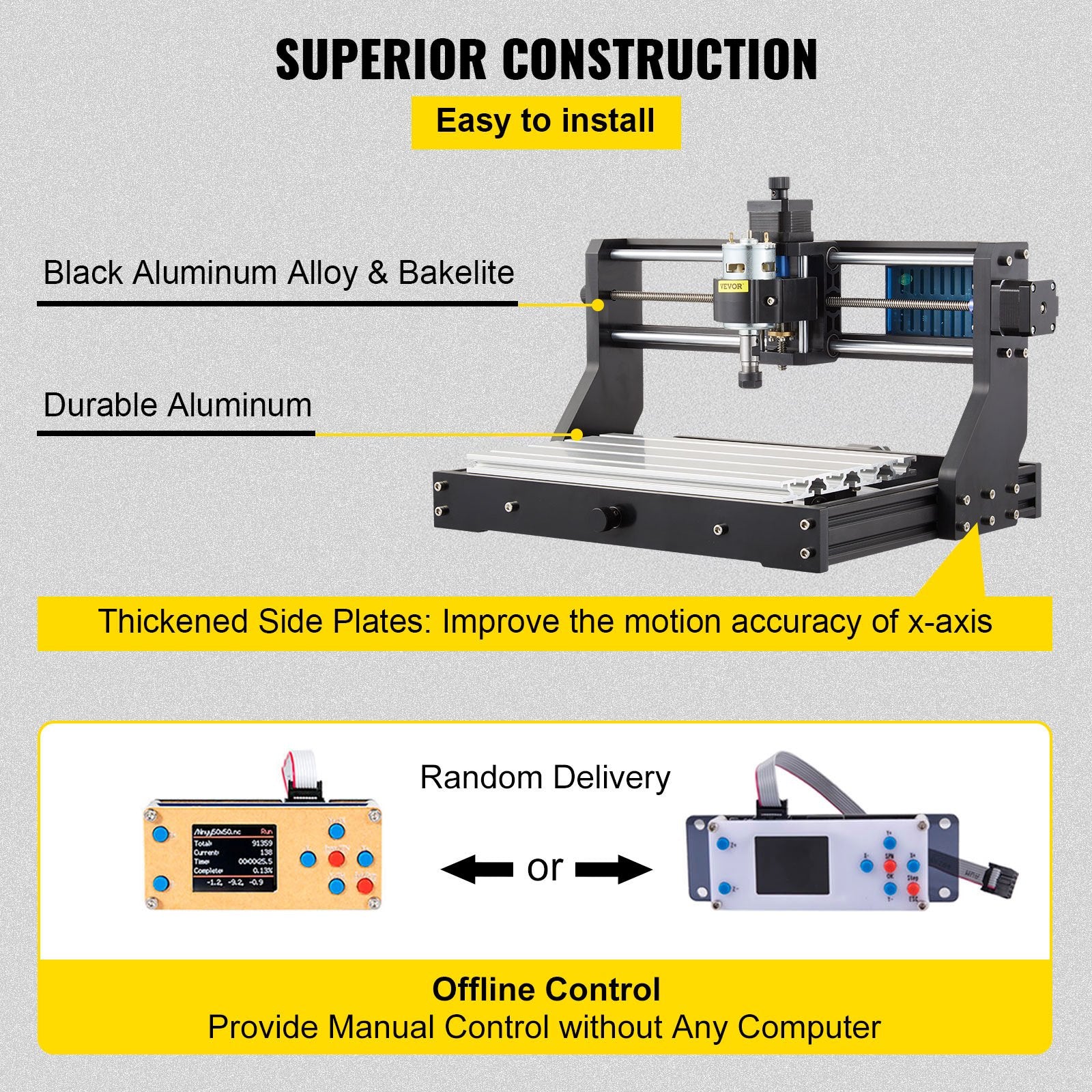

Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly. Engraving parameter recommendations: Feed rate (F): non-metallic materials 100–300 mm/min, soft metals 20–100 mm/min; single cutting depth: non-metallic materials 0.5–1.0 mm, soft metals 0.1–0.3 mm.

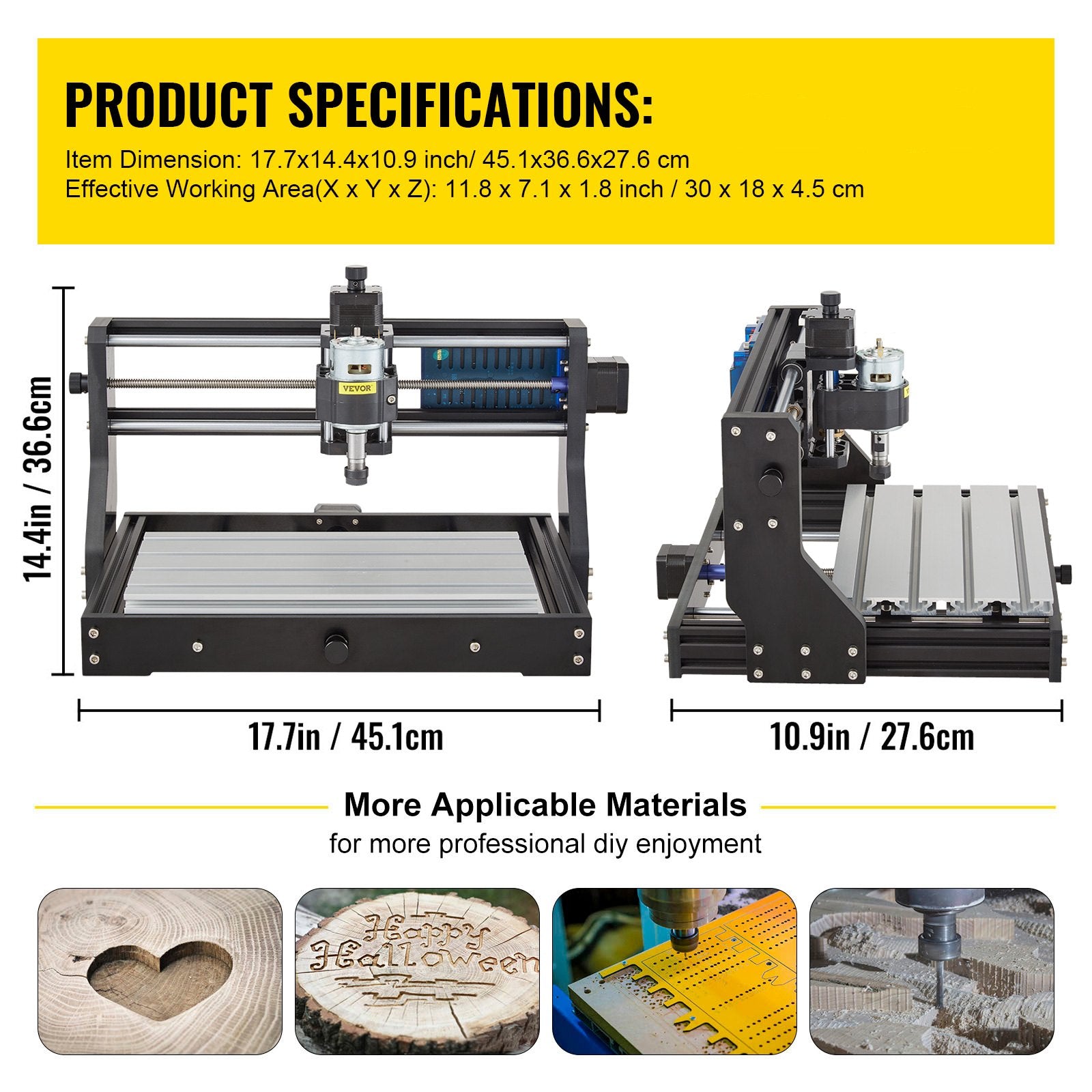

Product Specification
